BVS SW156P2 15.6 + 15.6 Inch Dual Display POS Transaction Terminal with Integrated 80mm Printer & Barcode Scanner, Windows, Full HD
Overview &Key Features
【Model】BVS-SJ156P2
【Item】

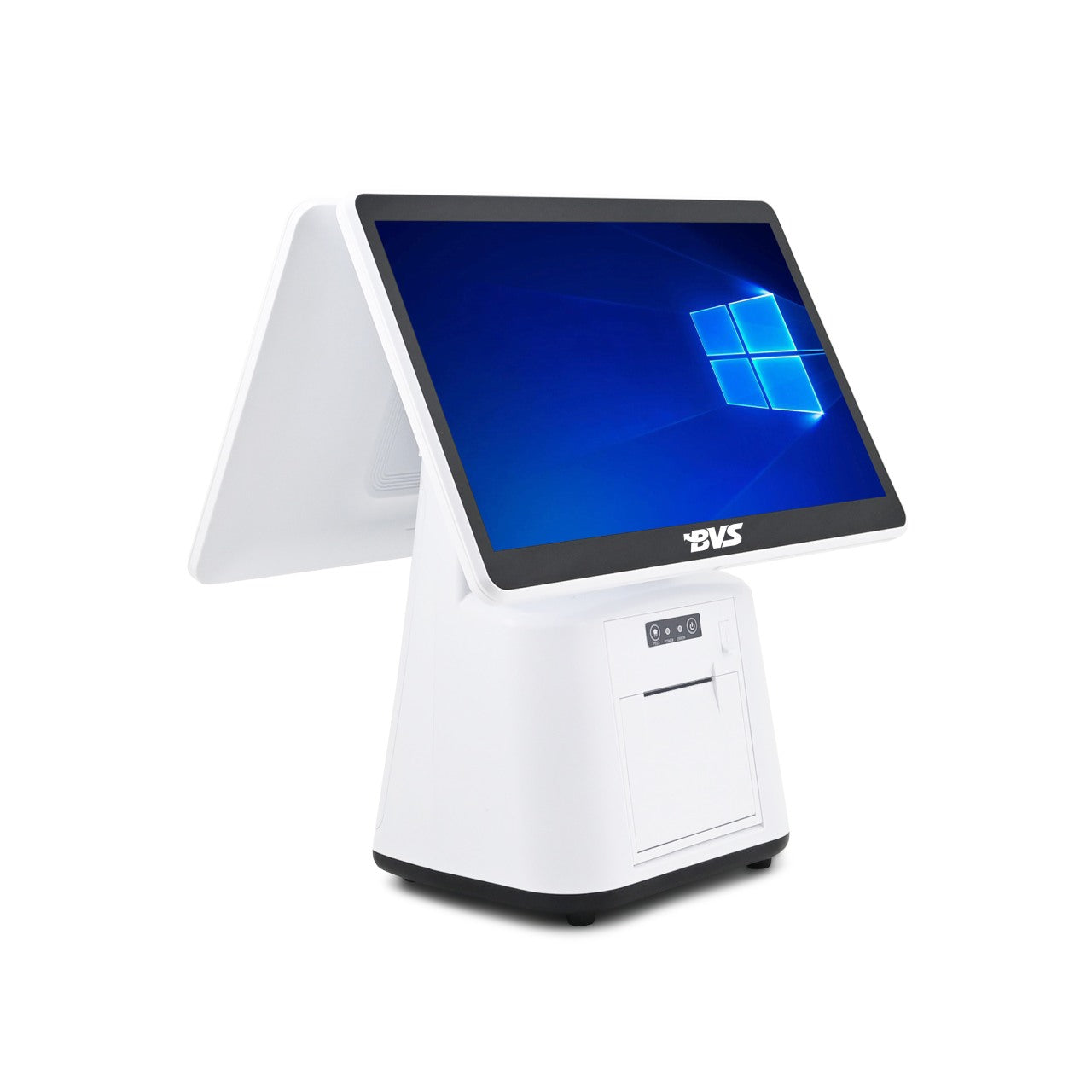

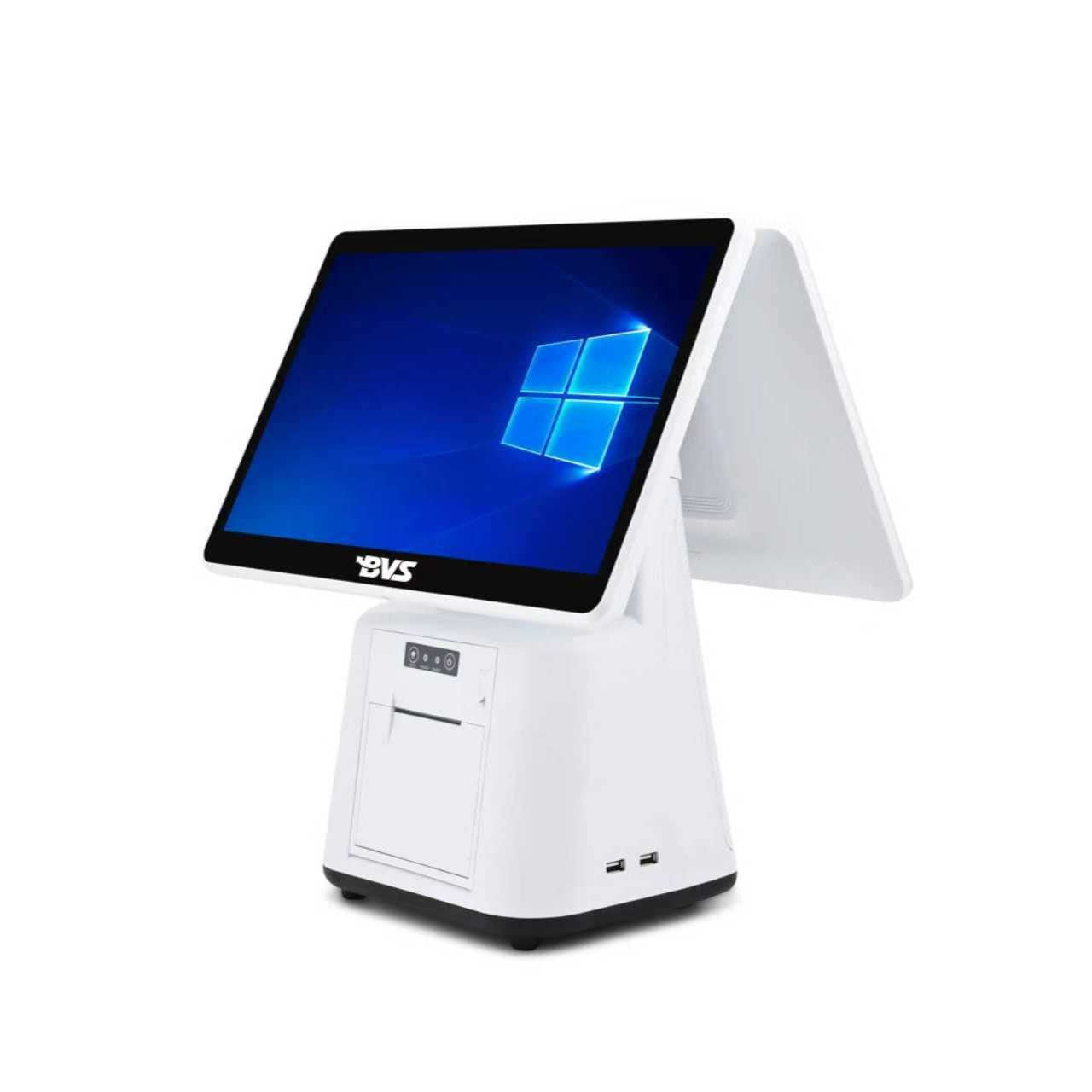

The BVS SW156P2 is a dual-display POS station featuring two 15.6-inch screens, providing a practical setup for both operator interaction and customer-facing information. Each display supports 1920×1080 Full HD resolution, delivering a clear interface for menus, product information, promotions, or transaction details. The ABS body incorporates an 80mm thermal printer and barcode scanner, reducing the need for separate peripheral equipment around the counter. With Windows support, the SW156P2 is well suited to modern retail, food service, hospitality, and customer-facing checkout environments.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty:2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5 6th Gen | i5-4th / i5-8th / i5-12th / i7-4th | ||||||||
| Frequency | 2.4 GHz | Turbo Boost 2.8 Ghz | |||||||||
| RAM | DDR3-8GB | DDR4-16GB/32GB/64GB | |||||||||
| SSD | NVMI-128GB | 64GB/256GB/512GB/1TB | |||||||||
| Operating system | Pre-install Windows OS（Unactivated）/Linux | / | |||||||||
| Display | Screen | 15.6 inch capacitive touch main display + 11.6" customer display | 15.6 inch capacitive touch main display +15.6" customer display | ||||||||
| Resolution | 1920*1080 | / | |||||||||
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) | / | |||||||||
| Contrast ratio | 1000 | / | |||||||||
| Brightness | 250cd/m2 | / | |||||||||
| Screen scale | 16:9 | / | |||||||||
| Network | Wi-Fi | 2.4G-Wi-Fi, supporting Wi-Fi 802.11b/g/n protocols | 5G-Wi-Fi | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth 3.0/3.0+HS/4.0 | |||||||||
| Interfaces | USB | 5 | / | ||||||||
| COM | 1(RS232) | 2*RS232/1*RS485 | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| LAN | 1 | 2 | |||||||||
| Headphone | 1 | / | |||||||||
| DC | 1 | / | |||||||||
| Power | 1 | / | |||||||||
| Multi-Media | Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | / | ||||||||
| Audio | MP3/WMA/AAC etc. | / | |||||||||
| Picture | jpeg, jpg | / | |||||||||
| Accessories | Adapter | 12V/5A | 12V/7A | ||||||||
| Temperature | Working temperature | -10~ 60°C | / | ||||||||
| Storage temperature | -20 ~ 70°C | / | |||||||||
| Mounting | VESA Mount | （VESA Wall Mount） | （Swing Arm Mount/Ceiling Mount） | ||||||||
| Panel Mount | （Front Snap-in Panel Mount） | （Rear Flush Panel Mount） | |||||||||
| Stand Mount | Desktop Stand Mount | / | |||||||||
| Packaging | Net weight | 3.26kg | / | ||||||||
| Gross weight | 5.8kg | / | |||||||||
| Product dimensions | 378*185*410mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 412*268*450mm（L*W*H）(Ctn Qty:1 pcs) | / | |||||||||
| Carton Dimension | / | / | |||||||||
| Other functions | Thermal Printer | NO | Customizable | ||||||||
| RFID | NO | Customizable | |||||||||
| QR code scanner | NO | Customizable | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
