BVS SW156P1 15.6 Inch All-in-One POS Checkout Terminal with Built-in 80mm Thermal Printer & Barcode Scanner, Windows System, 1920×1080
Overview &Key Features
【Model】BVS-SJ156P1
【Item】

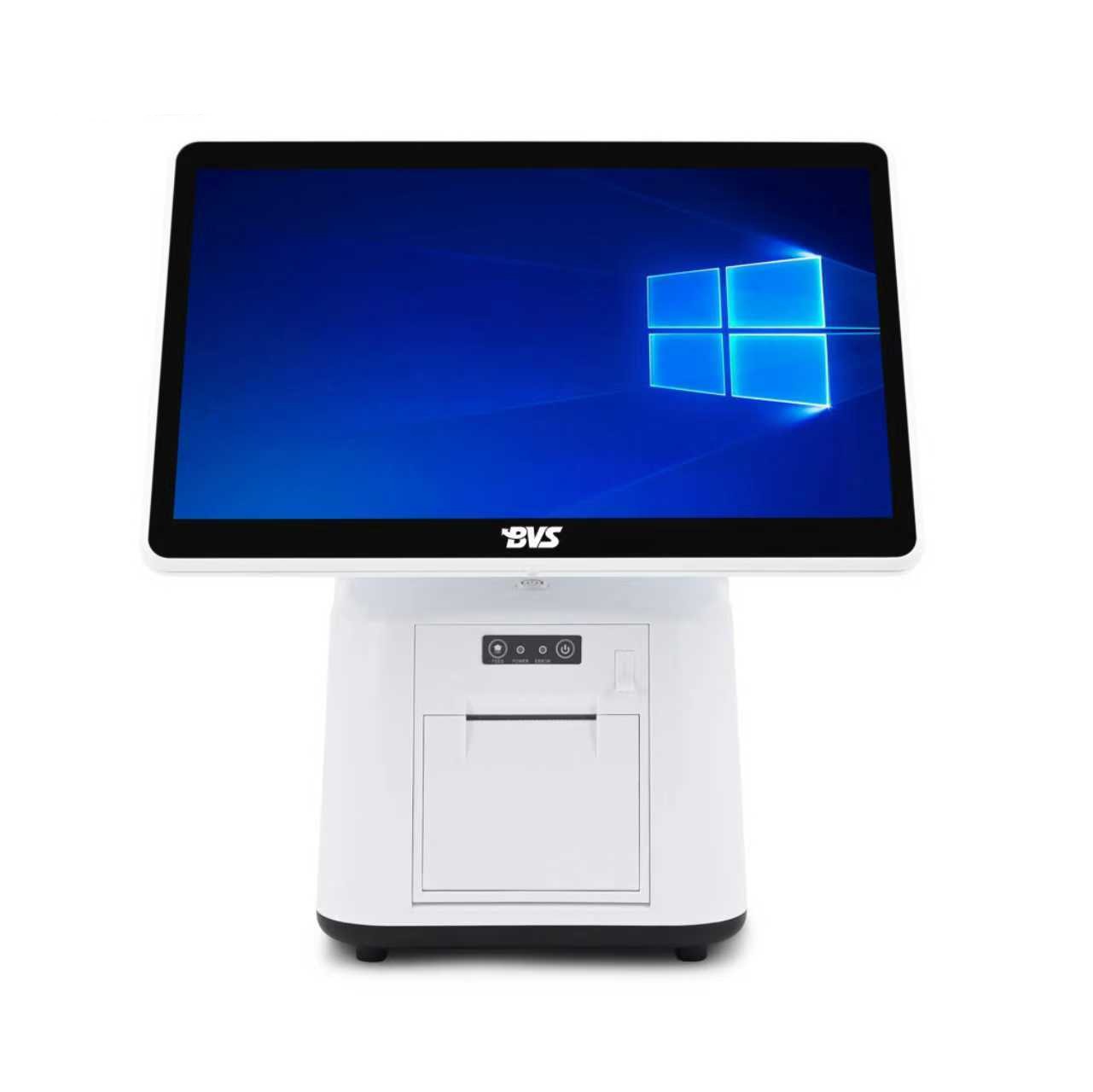

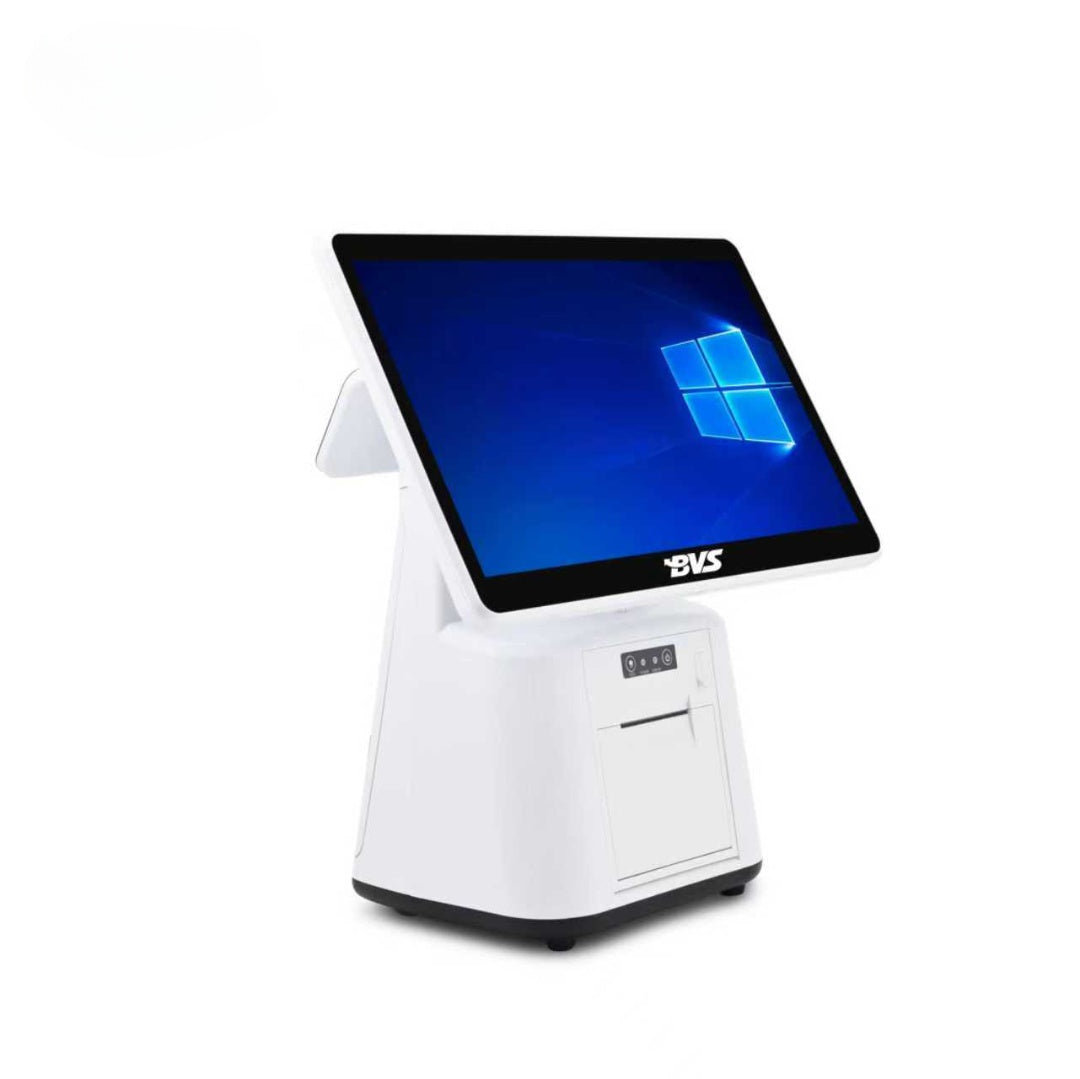

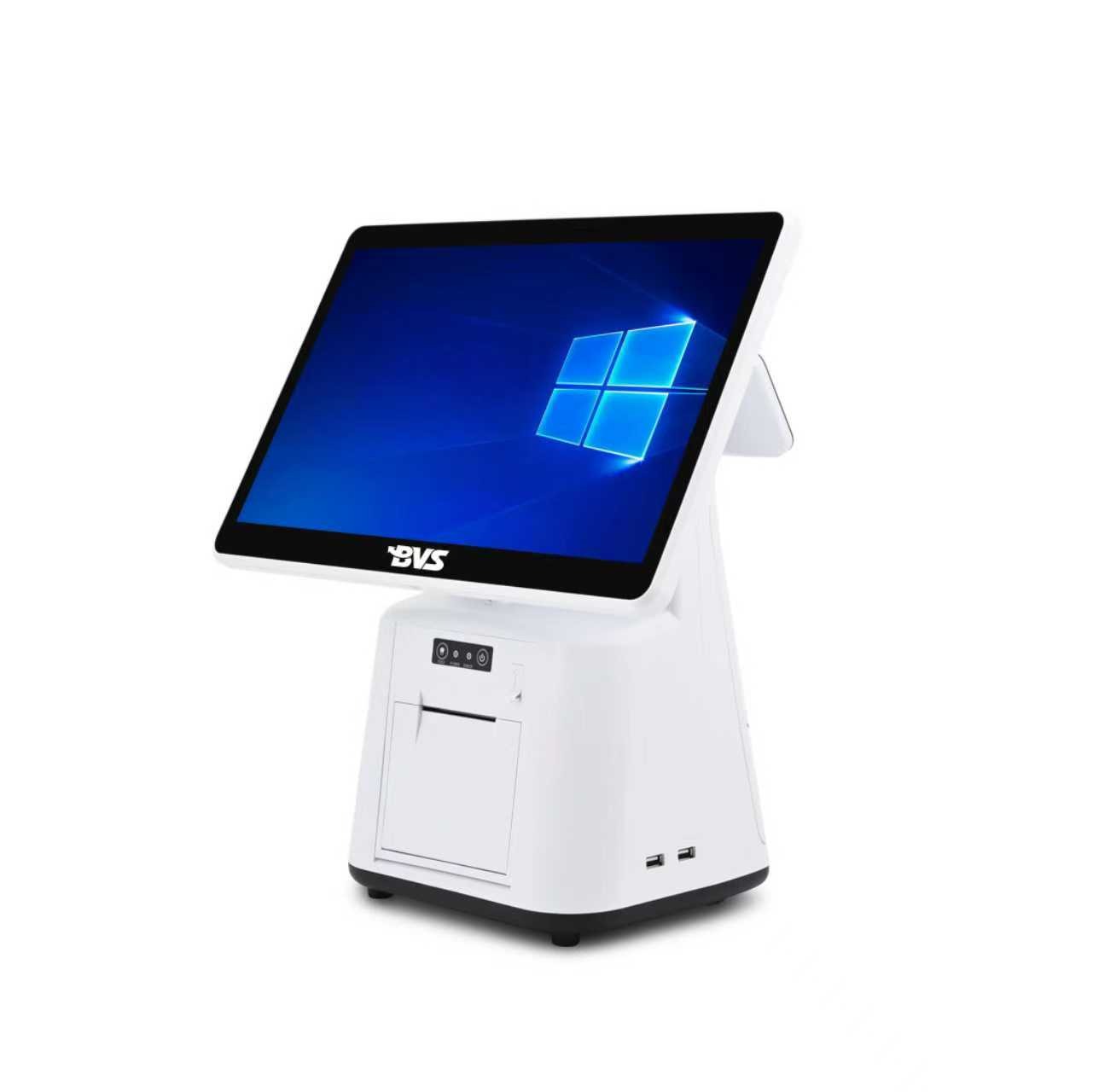

The BVS SW156P1 combines a 15.6-inch Full HD display with an integrated receipt printer and barcode scanner in a compact POS solution. Built with an ABS enclosure, this single-screen checkout terminal is designed for organized countertop installation while keeping essential transaction hardware in one unit. The built-in 80mm thermal printer handles receipt output, while the integrated scanner supports quick barcode-based product identification. Running on Windows, the SW156P1 can be configured for retail POS software, restaurant ordering, ticketing, and other transaction-based applications.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty:2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5 6th Gen | i5-4th / i5-8th / i5-12th / i7-4th | ||||||||
| Frequency | 2.4 GHz | Turbo Boost 2.8 Ghz | |||||||||
| RAM | DDR3-8GB | DDR4-16GB/32GB/64GB | |||||||||
| SSD | NVMI-128GB | 64GB/256GB/512GB/1TB | |||||||||
| Operating system | Pre-install Windows OS（Unactivated）/Linux | / | |||||||||
| Display | Screen | 15.6" inch capacitive touch main display | 15.6" inch capacitive touch main display+LED8 /VFD（customer display） | ||||||||
| Resolution | 1920*1080 | / | |||||||||
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) | / | |||||||||
| Contrast ratio | 1000 | / | |||||||||
| Brightness | 250cd/m2 | / | |||||||||
| Screen scale | 16:9 | / | |||||||||
| Network | Wi-Fi | 2.4G-Wi-Fi, supporting Wi-Fi 802.11b/g/n protocols | 5G-Wi-Fi | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth 3.0/3.0+HS/4.0 | |||||||||
| Interfaces | USB | 5 | / | ||||||||
| COM | 1(RS232) | 2*RS232/1*RS485 | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| LAN | 1 | 2 | |||||||||
| Headphone | 1 | / | |||||||||
| DC | 1 | / | |||||||||
| Power | 1 | / | |||||||||
| Multi-Media | Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | / | ||||||||
| Audio | MP3/WMA/AAC etc. | / | |||||||||
| Picture | jpeg, jpg | / | |||||||||
| Accessories | Adapter | 12V/5A | 12V/7A | ||||||||
| Temperature | Working temperature | -10~ 60°C | / | ||||||||
| Storage temperature | -20 ~ 70°C | / | |||||||||
| Mounting | VESA Mount | （VESA Wall Mount） | （Swing Arm Mount/Ceiling Mount） | ||||||||
| Panel Mount | （Front Snap-in Panel Mount） | （Rear Flush Panel Mount） | |||||||||
| Stand Mount | Desktop Stand Mount | / | |||||||||
| Packaging | Net weight | 7.6kg | / | ||||||||
| Gross weight | 5.8kg | / | |||||||||

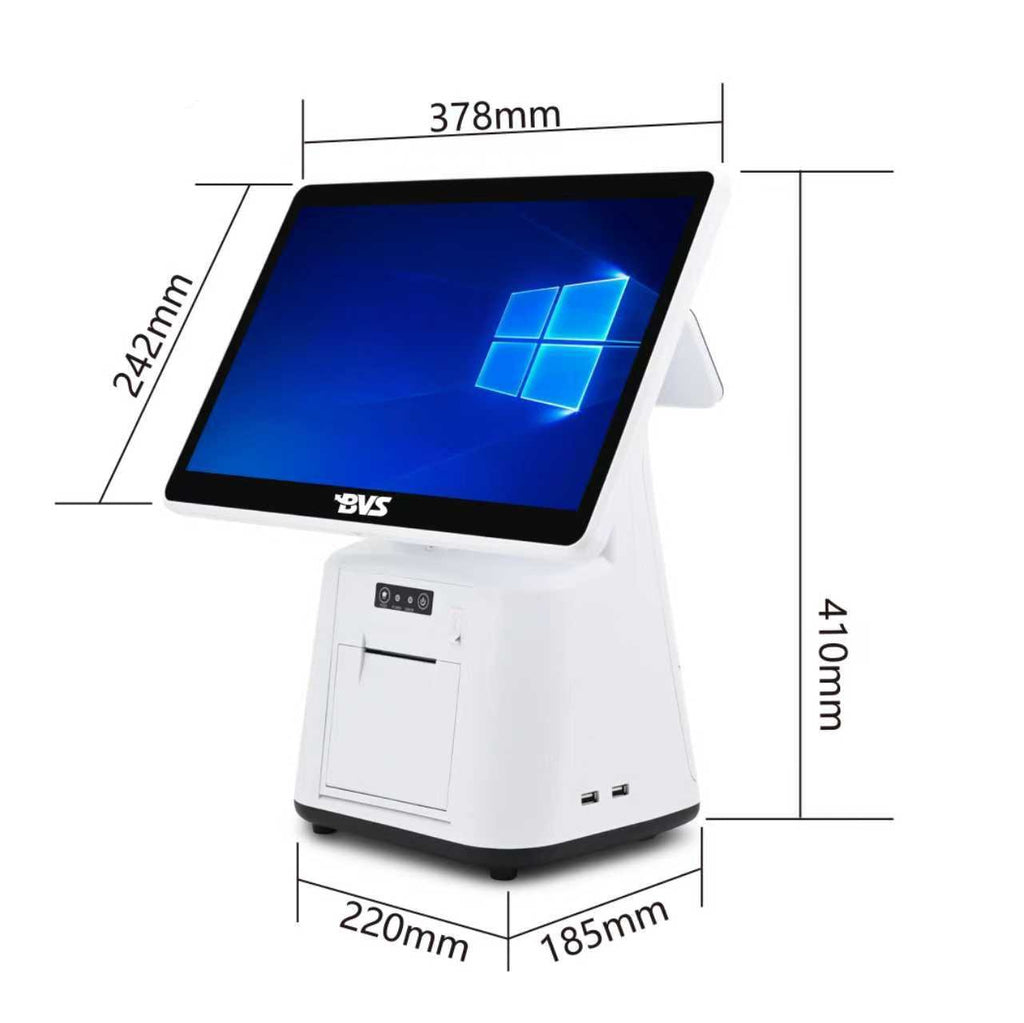

| Product dimensions | 378*185*410mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 412*268*450mm（L*W*H）(Ctn Qty:1 pcs) | / | |||||||||
| Carton Dimension | / | / | |||||||||
| Other functions | Thermal Printer | NO | Customizable | ||||||||
| RFID | NO | Customizable | |||||||||
| QR code scanner | NO | Customizable | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
OEM / ODM Customization
