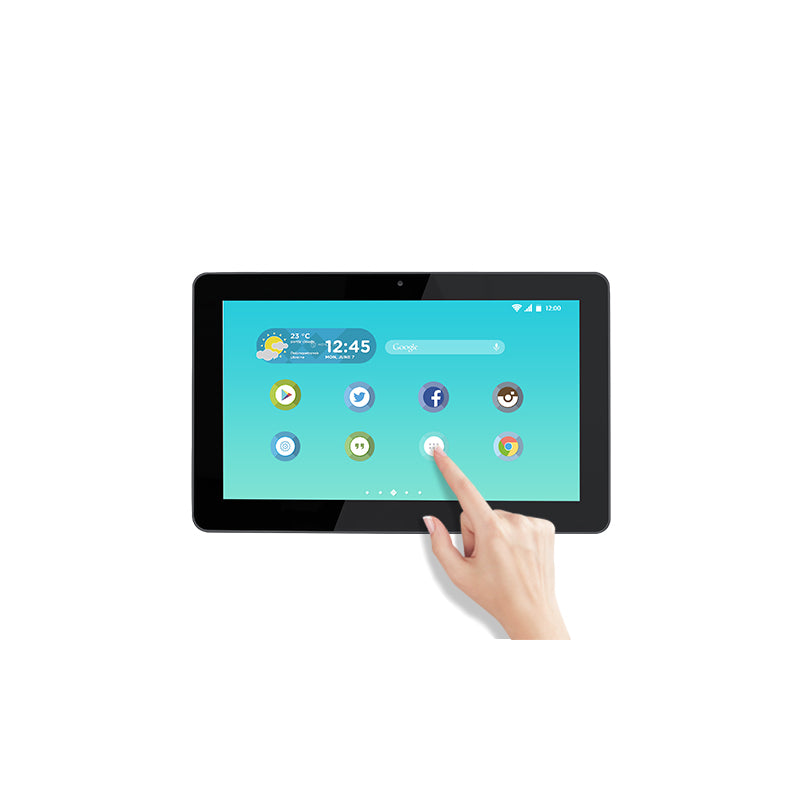

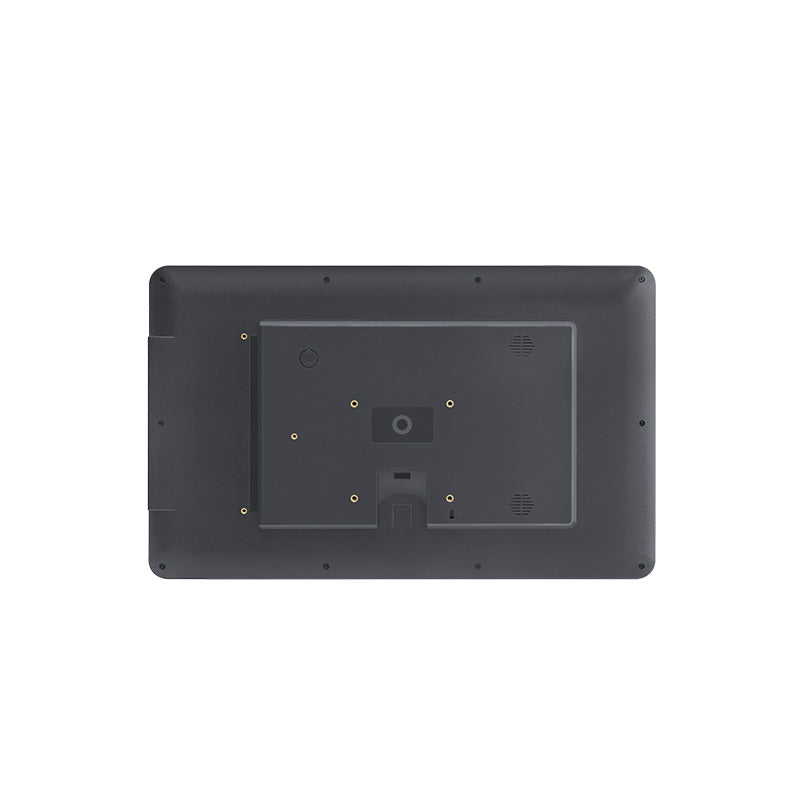

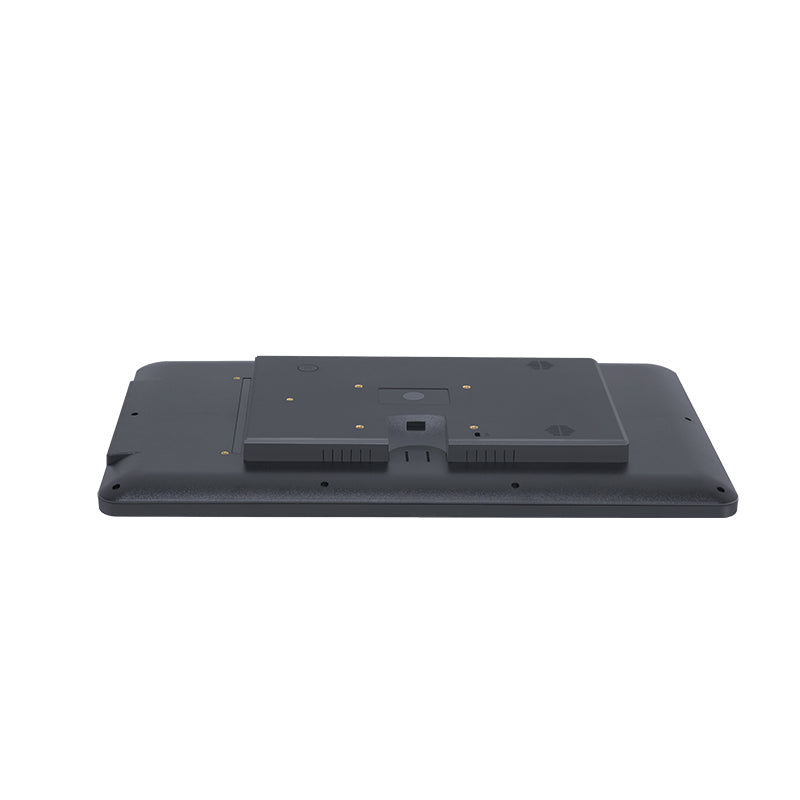

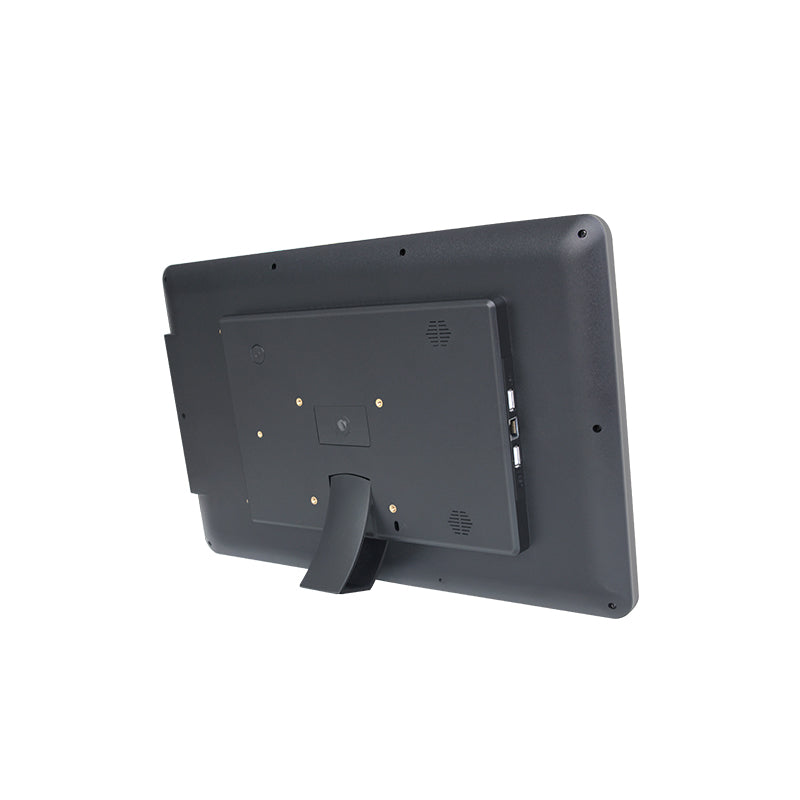

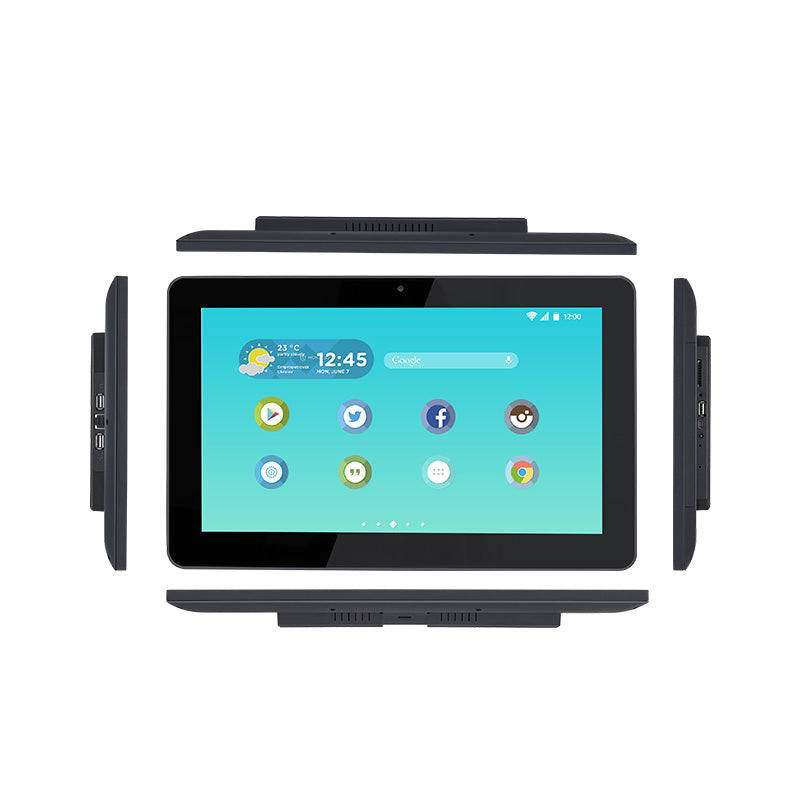

BVS‑ZR156 15.6 Inch ABS Plastic Android Touch All‑in‑One Computer, RK3566 2GB+32GB, Debian Linux Supported, Versatile Retail HMI
Overview &Key Features
【Model】BVS-ZR156
【Item】
BVS-ZR 14–32" All-in-One Android Panel PC – RK3566 for Industrial Monitoring
BVS‑ZR‑156 is a cost‑effective 15.6‑inch self‑order touch machine designed for small‑and‑medium catering stores. Adopting anti‑fingerprint ABS plastic shell in black and white styles, it adapts to milk tea shops, bakeries and casual dining store decoration. The RK3566 quad‑core processor with 2GB+32GB storage supports Android catering ordering software, while Debian Linux helps merchants develop exclusive store management programs. You can fix it on the counter with a foldable stand or hang it on the wall. Merchants can connect QR scanners and payment boxes through reserved ports to realize full self‑service ordering and checkout, reducing manual cashier pressure for retail food businesses.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Rockchip RK3566 Quad-core Cortex-A55 | / | ||||||||
| Frequency | 2.0 GHz | / | |||||||||
| GPU | Quad-core GPU | / | |||||||||
| NPU | 1TOPS NPU | / | |||||||||
| DDR | 2GB | 4GB | |||||||||
| EMMC | 32GB | 16GB | |||||||||
| Operating system | Android 11 | / | |||||||||
| Display | Screen | 15.6 inch Industrial LCD Screen | / | ||||||||
| Resolution | 1920(RGB)×1080 , WXGA | / | |||||||||
| Viewing angle | 89/89/89/89 (Typ.) (CR≥10) | / | |||||||||
| Contrast ratio | 800:1 (Typ.) (Transmissive) | / | |||||||||
| Brightness | 250 cd/m2 (Typ.) | 500 cd/m2 | |||||||||
| Screen scale | 16:9 | / | |||||||||
| Network | Wi-Fi | 2.4G Wi-Fi, 802.11b/g/n | 5G Wi-Fi | ||||||||
| Ethernet | 1 x Gigabit Ethernet (RJ45) | / | |||||||||
| BT | Bluetooth | / | |||||||||
| 4G LTE | / | / | |||||||||
| Interfaces | USB | USB Host * 3 | / | ||||||||
| COM | / | TTL / RS232 / RS485 * 2 (support external NFC, Printer, Scanner, etc.) | |||||||||
| HD | / | / | |||||||||
| TF card slot | Max support 32GB TF card | / | |||||||||
| LAN | 1 | / | |||||||||
| SIM-4G | 1 | / | |||||||||
| DC-IN | 1 | / | |||||||||
| Multi-Media | Video | H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 1080P multi-video decoding, YouTube, etc. | / | ||||||||
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP | / | |||||||||
| Picture | JPG, BMP, PNG formats browsing, rotation, slide show, zoom | / | |||||||||
| Accessories | Adapter | DC 12V / 5A | / | ||||||||
| Temperature | Working temperature | -20°C ~ 60°C | / | ||||||||
| Storage temperature | / | / | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 2.71kg | / | ||||||||
| Gross weight | 3.71kg | / | |||||||||
| Product dimensions | 235*386*45mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 420*480*130mm（L*W*H） | / | |||||||||
| Carton Dimension | 520*410*470mm（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| Other functions | Camera | 2MP | (1.3MP 720P, 2MP 1080P, 5MP) | ||||||||
| NFC | / | (ISO/IEC14443A) | |||||||||
| RFID | / | / | |||||||||
| POE | / | Support POE power supply | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
