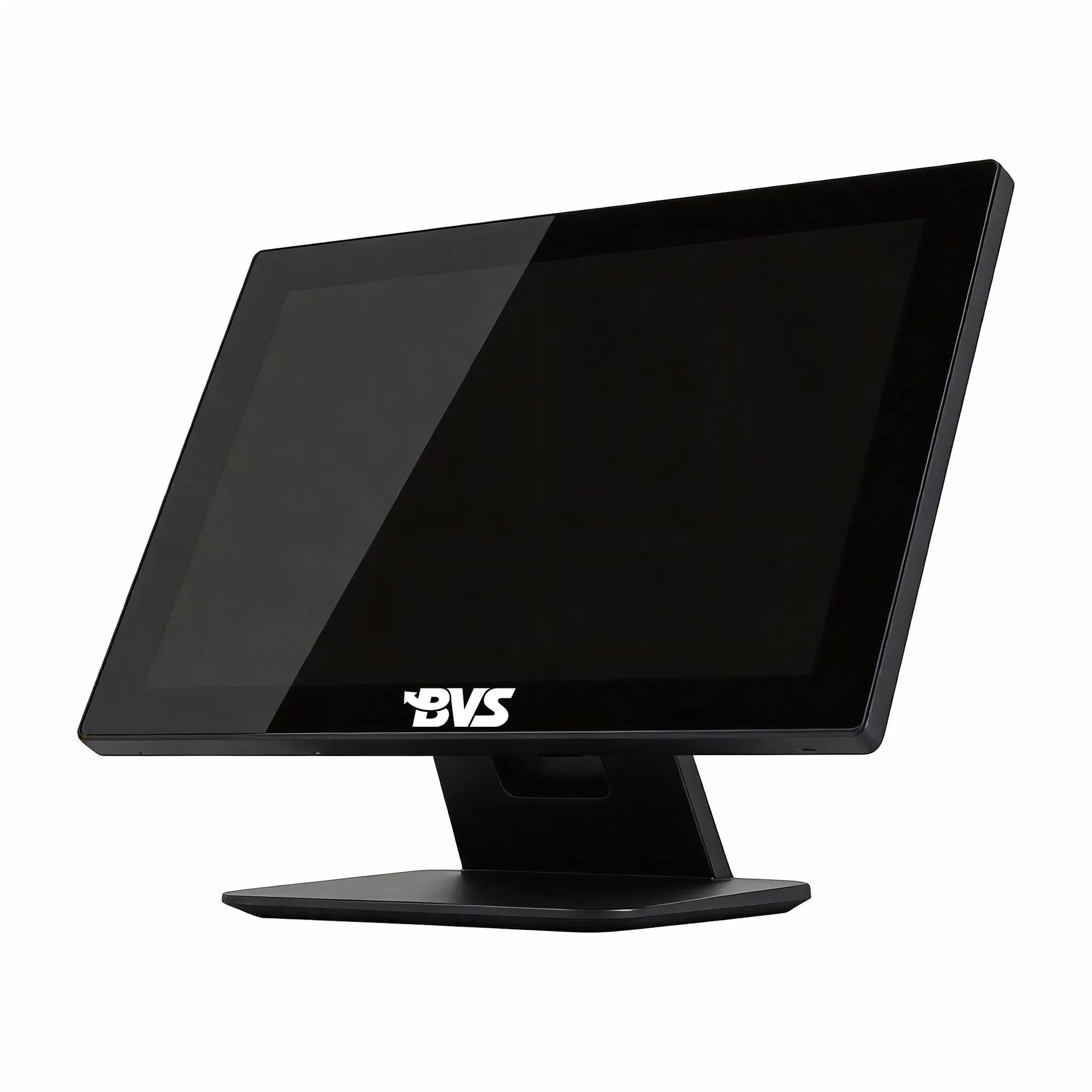

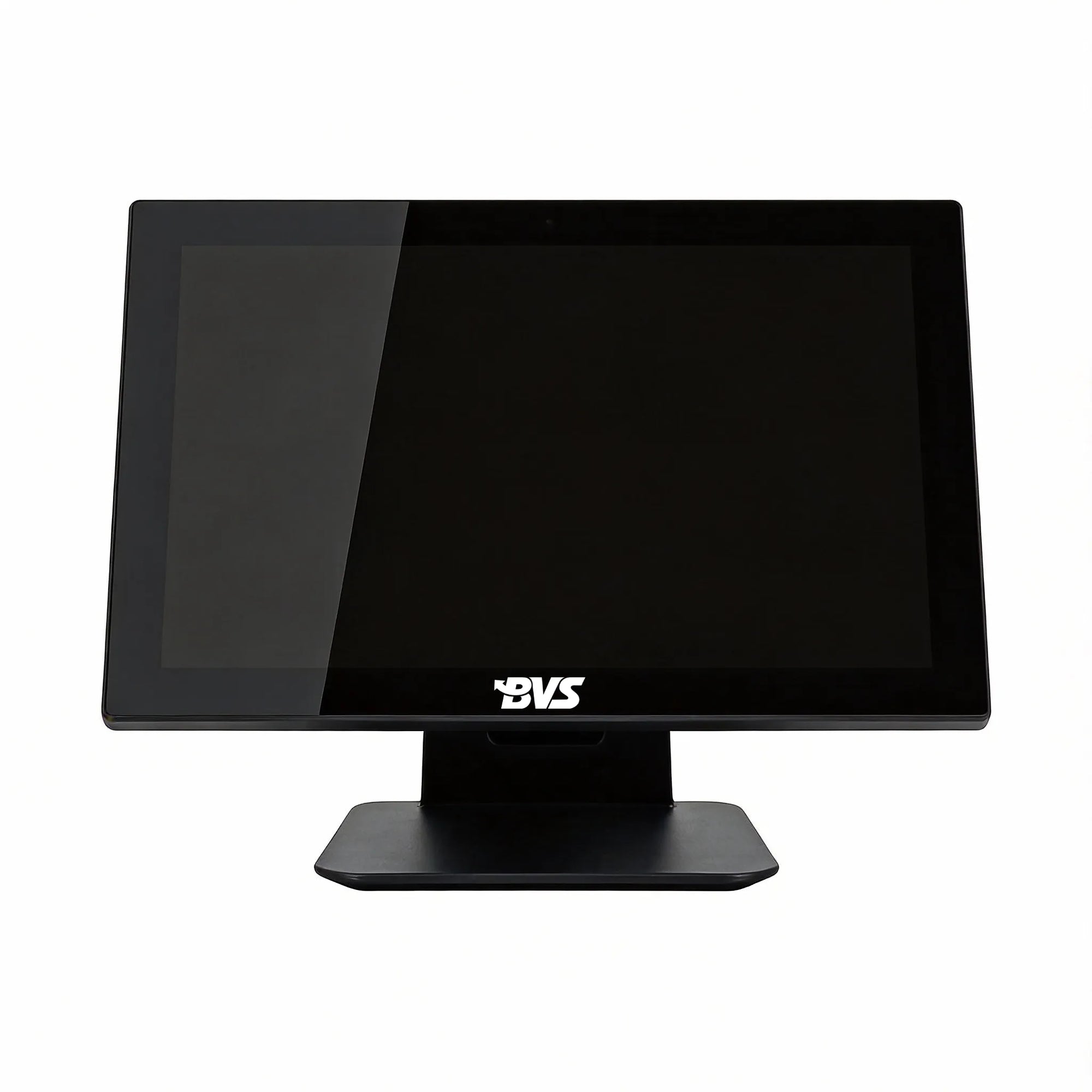

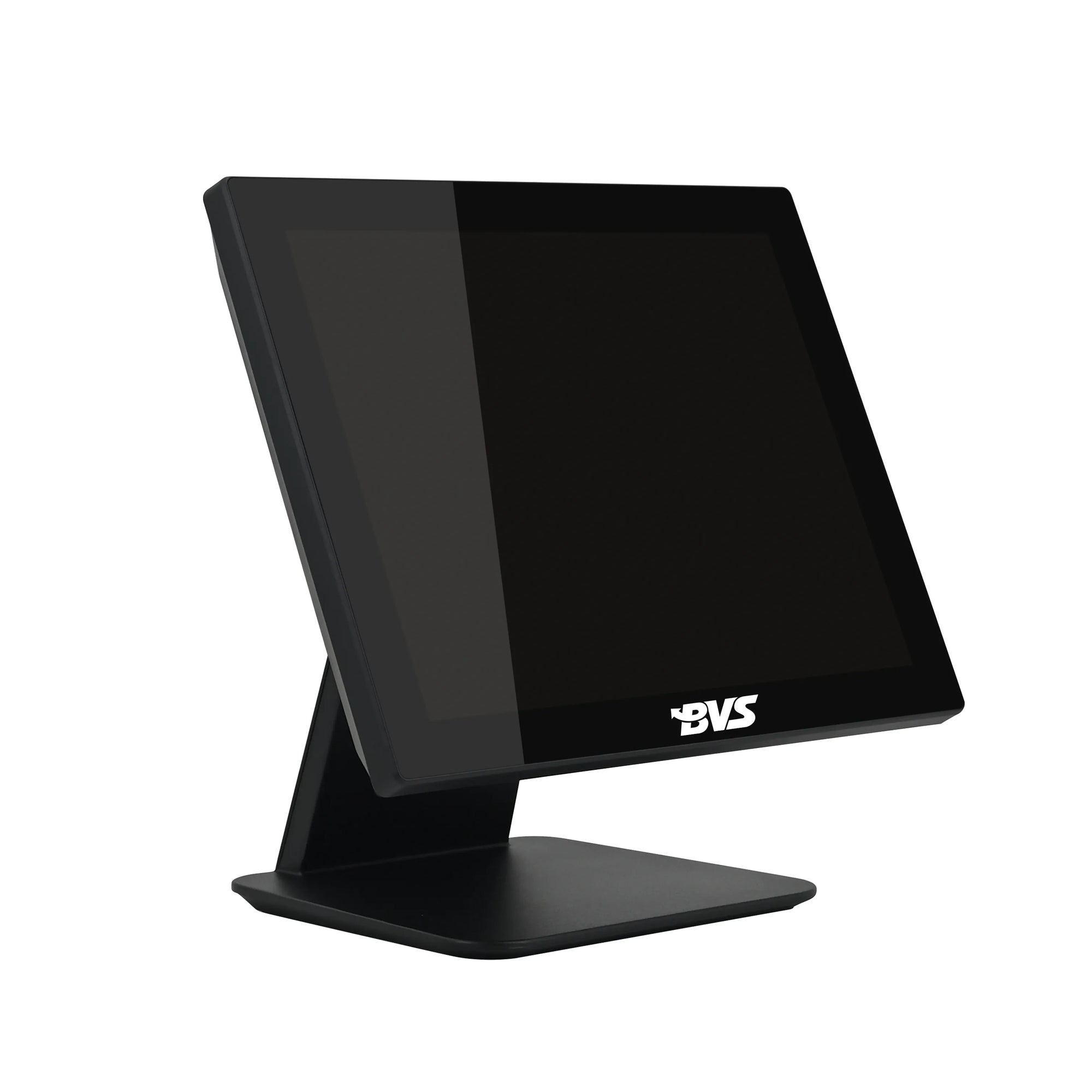

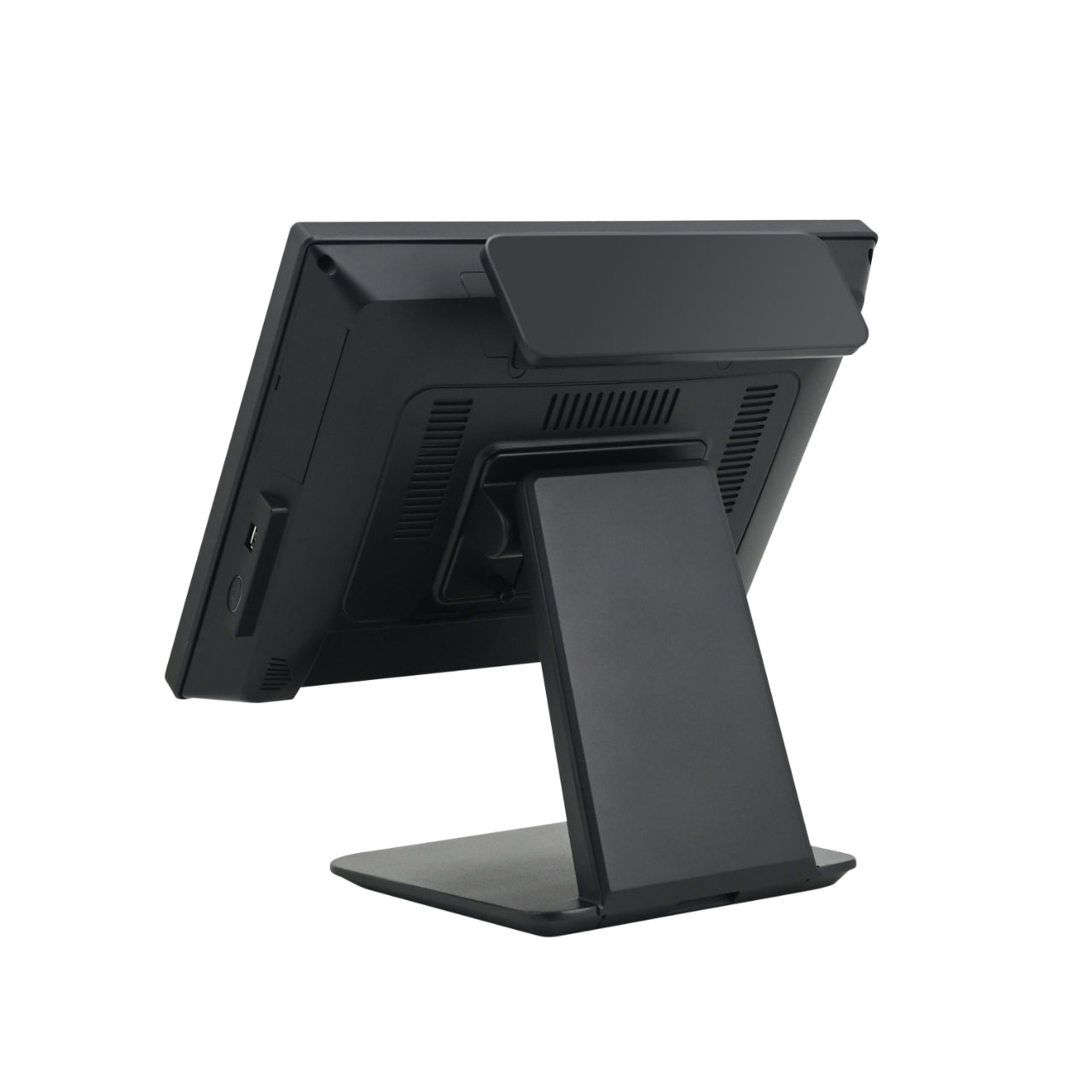

BVS-SW156R1 15.6 Inch POS Terminal, 1920×1080 Full HD Display, ABS Housing with Metal L-Shape Stand, Windows & Linux POS System, Optional MSR & Customer Display
Overview &Key Features
【Model】BVS-SW156R1
【Item】
The BVS-SW156R1 15.6-inch POS terminal combines a clean countertop design with flexible configuration options for modern retail and service environments. Its Full HD 1920×1080 display provides a clear interface for POS software, product management, ordering, and checkout operations. The ABS housing and metal L-shaped stand provide a stable structure while keeping the terminal suitable for space-conscious counters. The system supports both Windows and Linux, offering compatibility with different POS software platforms. For customized deployments, the terminal can be configured with an MSR and an optional VFD/LED8 customer display, making it adaptable to different checkout and customer-facing requirements.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty:2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5 6th Gen | i5-4th / i5-8th / i5-12th / i7-4th | ||||||||
| Frequency | 2.4 GHz | Turbo Boost 2.8 Ghz | |||||||||
| RAM | DDR3-8GB | DDR4-16GB/32GB/64GB | |||||||||
| SSD | NVMI-128GB | 64GB/256GB/512GB/1TB | |||||||||
| Operating system | Pre-install Windows OS（Unactivated）/Linux | / | |||||||||
| Display | Screen | 15.6" inch capacitive touch main display | 15.6" inch capacitive touch main display+LED8 /VFD（customer display） | ||||||||
| Resolution | 1366*768 | 1920*1080 | |||||||||
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) | / | |||||||||
| Contrast ratio | 1000 | / | |||||||||
| Brightness | 250cd/m2 | / | |||||||||
| Screen scale | 16:9 | / | |||||||||
| Network | Wi-Fi | 2.4G-Wi-Fi, supporting Wi-Fi 802.11b/g/n protocols | 5G-Wi-Fi | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth 3.0/3.0+HS/4.0 | |||||||||

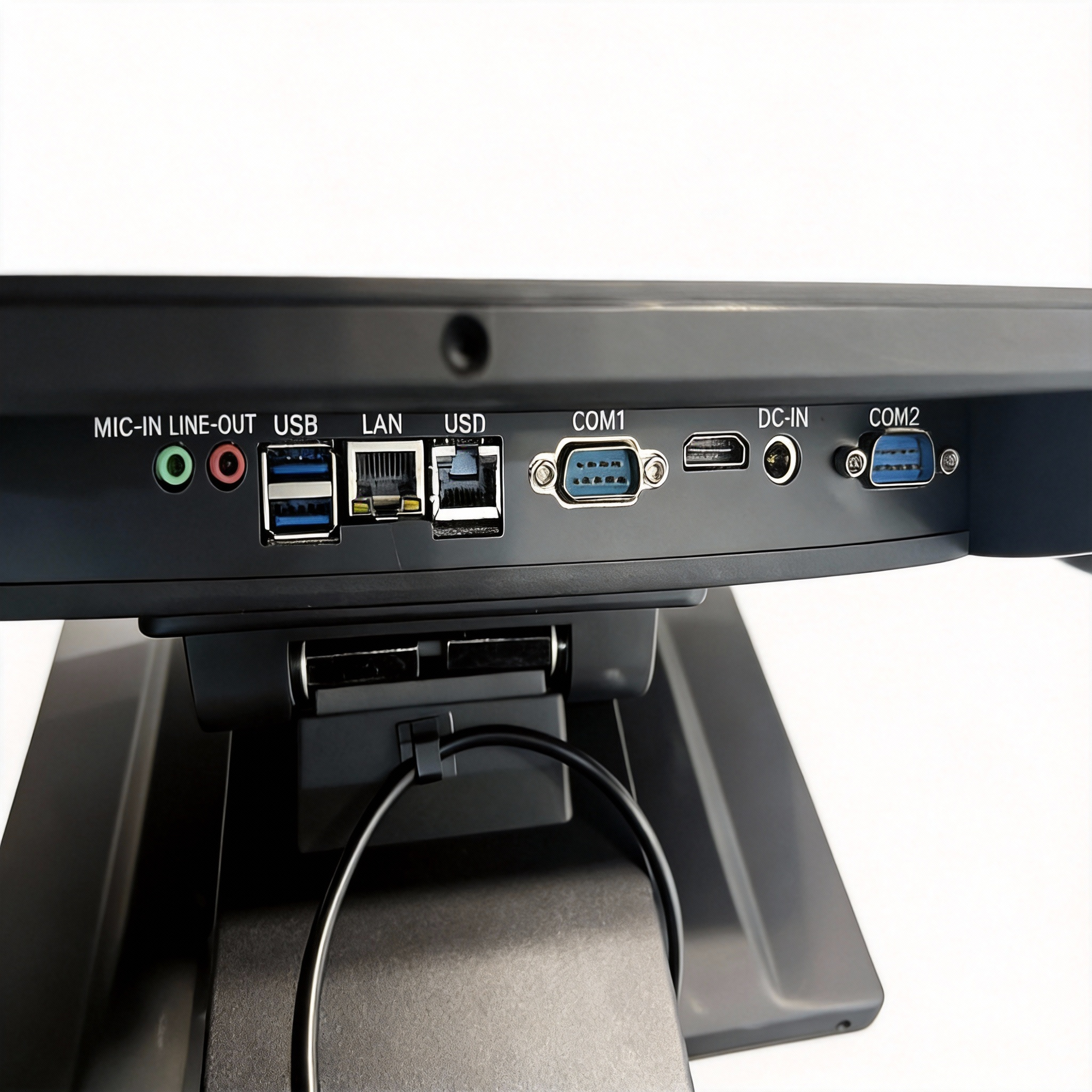

| I/O | I/O | 5 X USB,1 X COM, 1 X HD, 1X VGA, 1 X LAN, 1 X DC, 1 X LINE OUT, 1 X MIC IN | 5 X USB,2 X COM, 1 X HD, 1X VGA, 2 X LAN, 1 X DC, 1 X LINE OUT, 1 X MIC IN | ||||||||
| Multi-Media | Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | / | ||||||||
| Audio | MP3/WMA/AAC etc. | / | |||||||||
| Picture | jpeg, jpg | / | |||||||||
| Accessories | Adapter | 12V/5A | 12V/7A | ||||||||
| Temperature | Working temperature | -10~ 60°C | / | ||||||||
| Storage temperature | -20 ~ 70°C | / | |||||||||
| Mounting | Stand Mount | Desktop Stand Mount | / | ||||||||
| Packaging | Net weight | 3.26kg | / | ||||||||
| Gross weight | 5.8kg | / | |||||||||
| Product dimensions | 390*210*320mm（L*W*H） | / | |||||||||
| Single Package Dimension | 480*270*380mm（L*W*H）(Ctn Qty:1 pcs) | / | |||||||||
| Carton Dimension | / | / | |||||||||
| Other functions | NFC | NO | |||||||||
| RFID | NO | ||||||||||
| POE | NO | ||||||||||
| OEM | Appearance, Interface, CPU, Function ,Logo, etc. | ||||||||||
