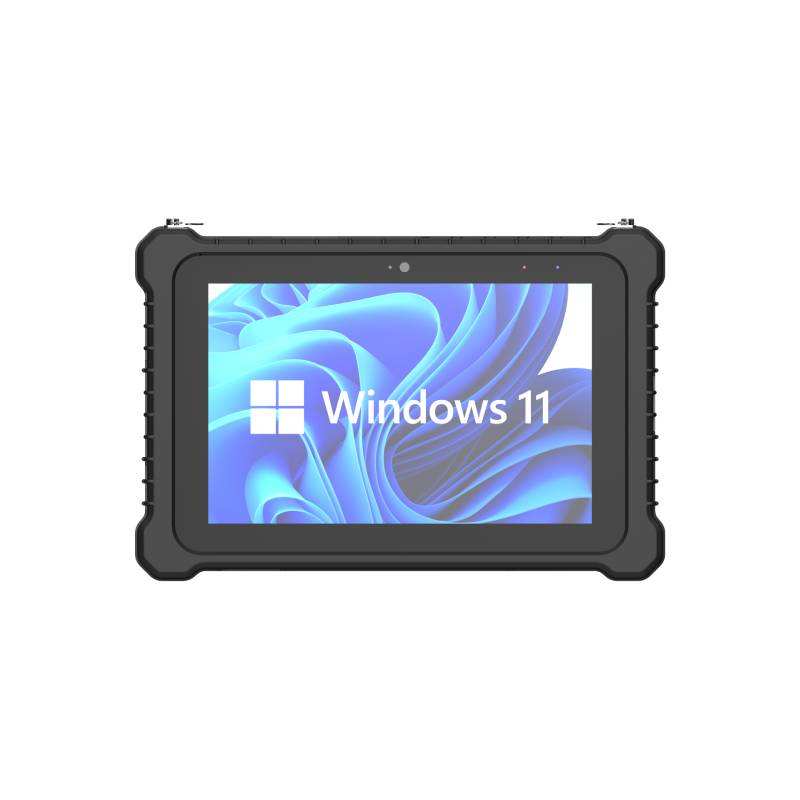

BVS-F2W 10.1 Inch Windows 11 Pro Rugged Tablet PC, Intel Alder Lake i5/i7 8GB+128GB, IP67 Compact Industrial Mobile HMI, RS232 RJ45 Field Engineering Computer
Overview &Key Features
【Model】BVS-101-F2W
【Item】
BVS-F2W is a compact 10.1-inch IP67-rated Windows rugged tablet designed for industrial field engineering, on-site equipment maintenance and mobile HMI control. Its slim reinforced chassis (284×189×25mm, 1150g) provides genuine portability while delivering IP67 dust/water protection and 0.8m drop resistance for factory and outdoor use. Running on the Intel Alder Lake i5/i7 processor with 10 cores and 12 threads, 8GB RAM (optional 16GB) and 128GB removable storage (optional 256GB), it delivers desktop-class performance to run Windows industrial software, PLC configuration tools and diagnostic applications directly in the field.Built for practical industrial connectivity, BVS-F2W includes a USB 3.0 port, a configurable RS232/485 DB9 serial interface for direct PLC/controller communication, an RJ45 Ethernet port and HDMI mini output, plus POGO docking pins. Wi-Fi 5 with optional 4G/5G cellular and Bluetooth 4.2 enable remote diagnostics and real-time data upload. The 10-point capacitive touch with glove and wet-hand support allows operation while wearing work gloves, and the 550cd/m² display (optional 1000cd/m²) remains readable in bright industrial settings. An 8000mAh removable battery powers extended field shifts, while the 8MP autofocus rear camera documents equipment inspection records.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty:2-year standard warranty included.
【Parameter List】
| Basic Parameters | Product Model | 101-F2W |
| Description | Windows 10.1" Rugged Tablet | |
| Weight | Net 1150g | |

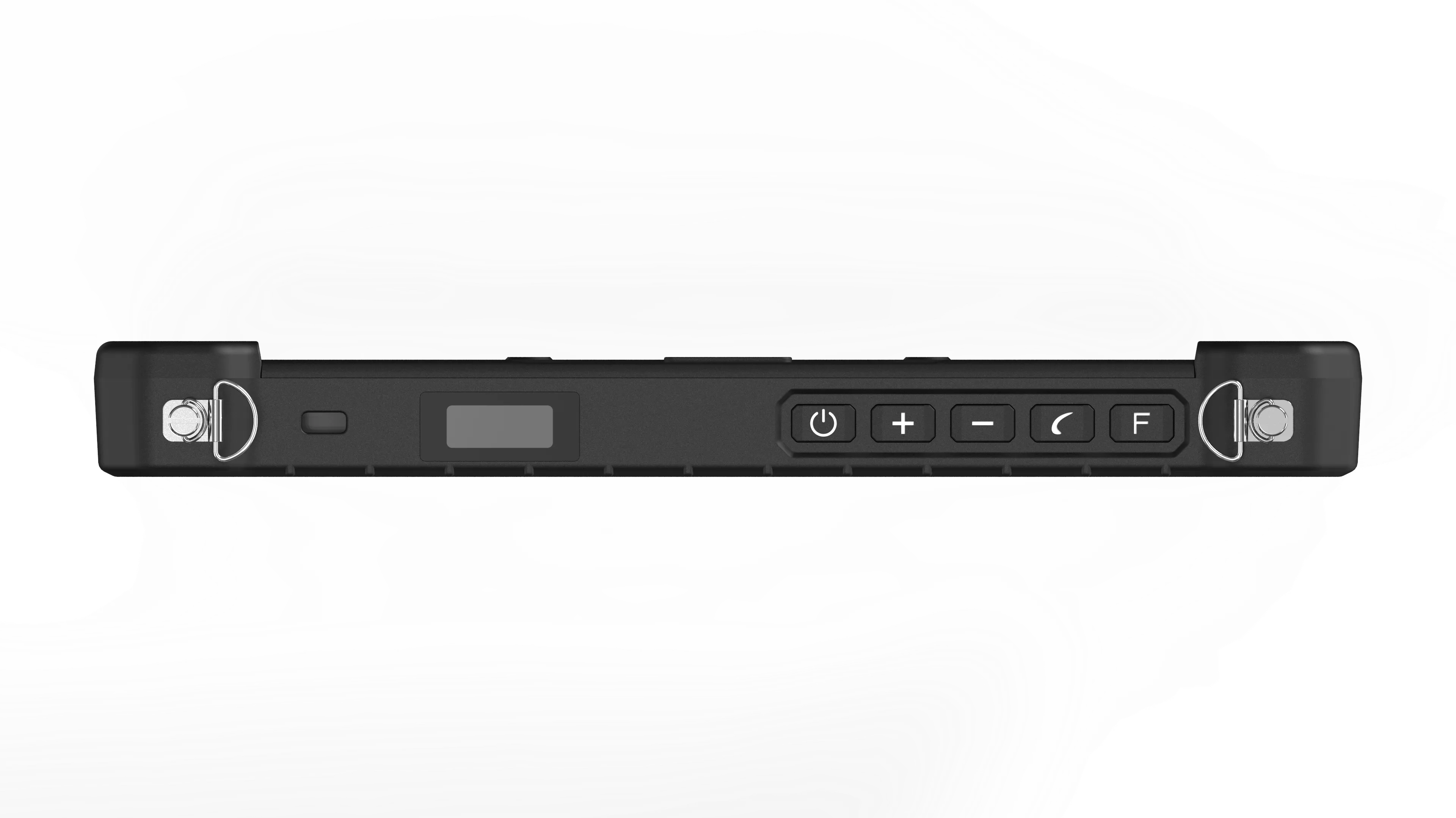

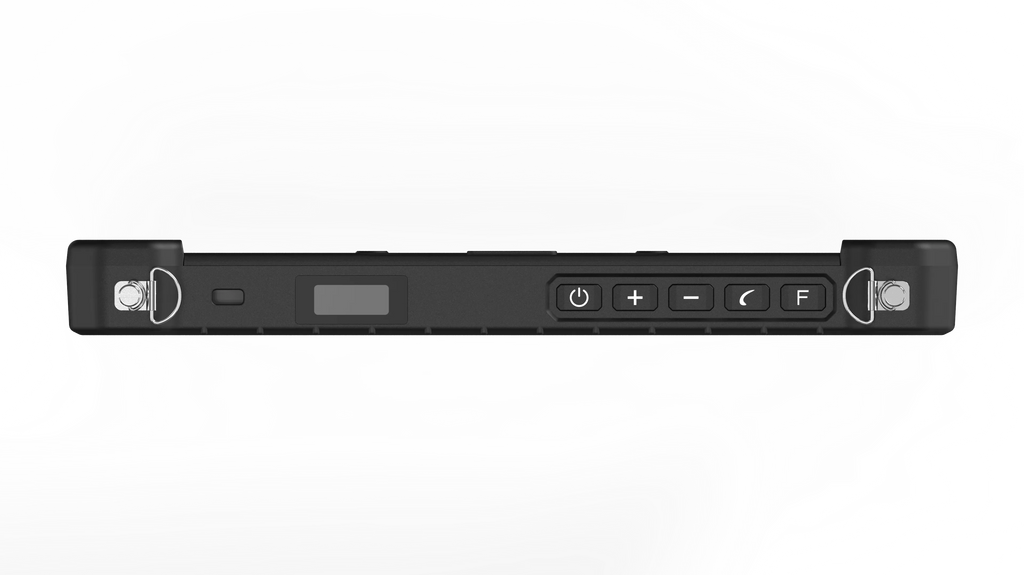

| Keys | Power, Volume +/-, Custom keys, Shortcut keys | |
| Screen Size | 10.1" 16:10 IPS | |
| Resolution | 1200(H) x 1920(V) | |
| Brightness | Standard 550cd/㎡, Optional 700/1000cd/㎡ | |
| Touch Panel | Capacitive, 10-point (G+F+F), supports glove & wet hand mode, customizable EMR/Anti-glare/Anti-reflection/Shockproof/Special screen |
|
| Battery | 7.6V/8000mAh (removable gel polymer Li-battery) | |
| Camera | Front 5.0MP, Rear 8.0MP with autofocus | |
| Speaker & Mic | Built-in 8Ω/2W*2, waterproof speaker x1 | |
| Hardware Configuration | CPU | Intel Alder Lake i5/i7, 10th/12th Gen, 10 cores 12 threads, 1.3GHz base, Turbo 4.4/4.7GHz |
| GPU | Intel Iris Xe Graphics eligible | |
| RAM | 8GB (Optional 16GB) | |
| SSD | 128GB Removable (Optional 256GB) | |
| Gyroscope | Built-in | |
| Accelerometer | Built-in | |
| Compass | Built-in | |
| E-Compass | Built-in | |
| Operating System | Windows 10/11 PRO (Home/IoT) | |
| Network Connectivity | WIFI | WIFI5, supports 4G global/5G module |
| Bluetooth | BT4.2 (BLE) Class1, Range 10m | |
| 4G/5G | Optional | |
| GNSS | Optional | |
| GPS | Optional | |
| RFID | Optional | |
| NFC | Optional | |
| Optional Modules | Barcode/QR Code | Optional |
| High-Precision Positioning | Optional | |
| Fingerprint | Optional | |
| ID Card Reader | Optional | |
| UHF RFID | Optional | |

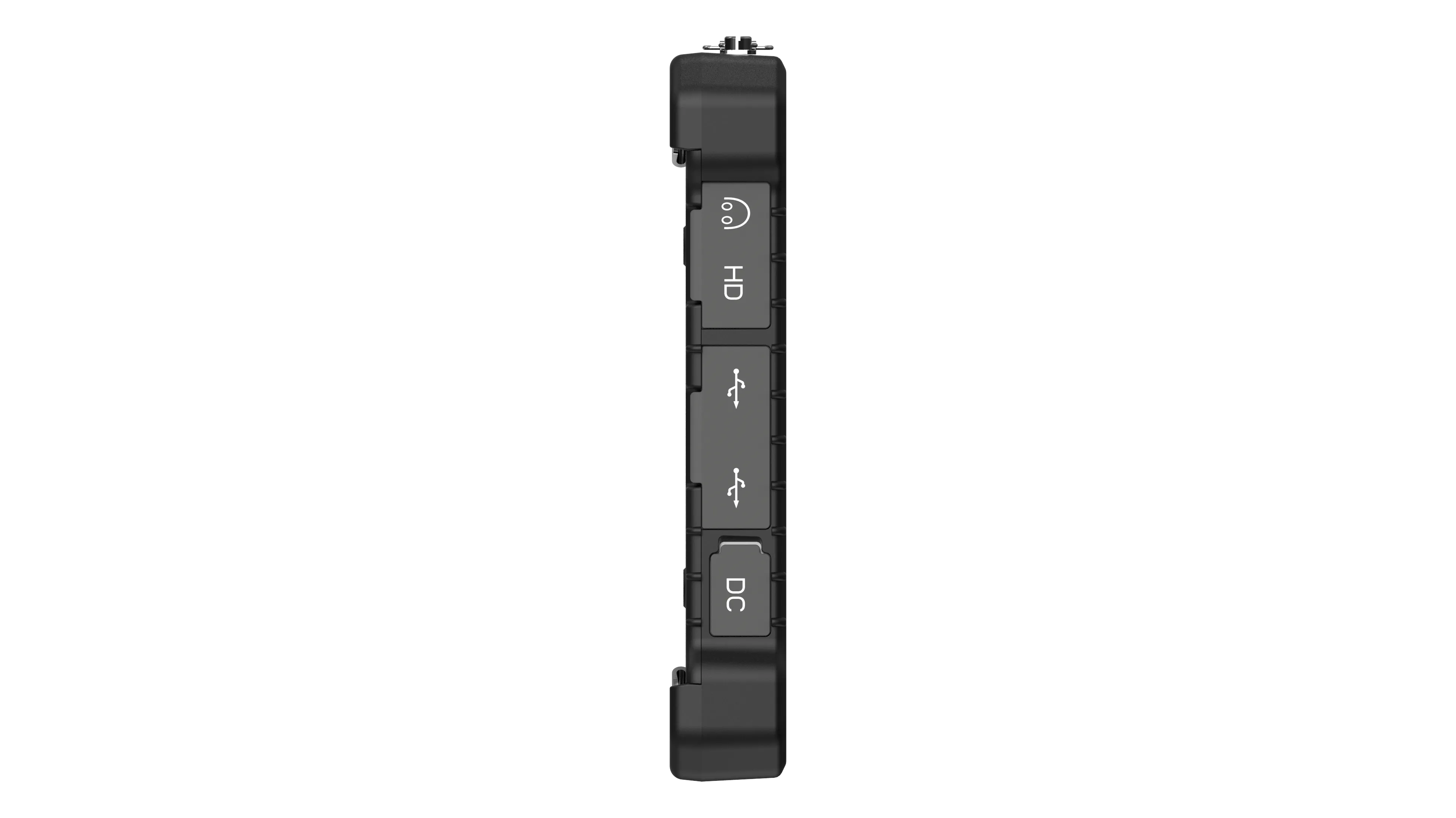

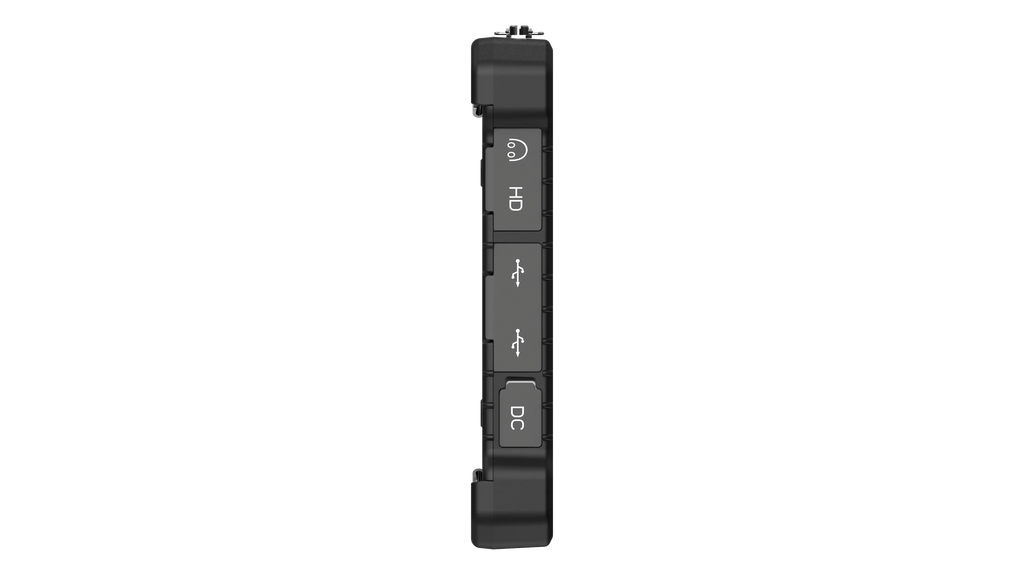

| I/O Interfaces | USB Ports | USB 3.0 ×1 |
| Headphone Jack | 3.5mm standard headphone ×1 | |
| TF Card | Supported, Max 128GB | |
| SIM Card | Single SIM | |
| HDMI | HDMI 1.4 Mini ×1 | |
| DC Port | DC 3.5×1.35mm (optional aviation connector) | |

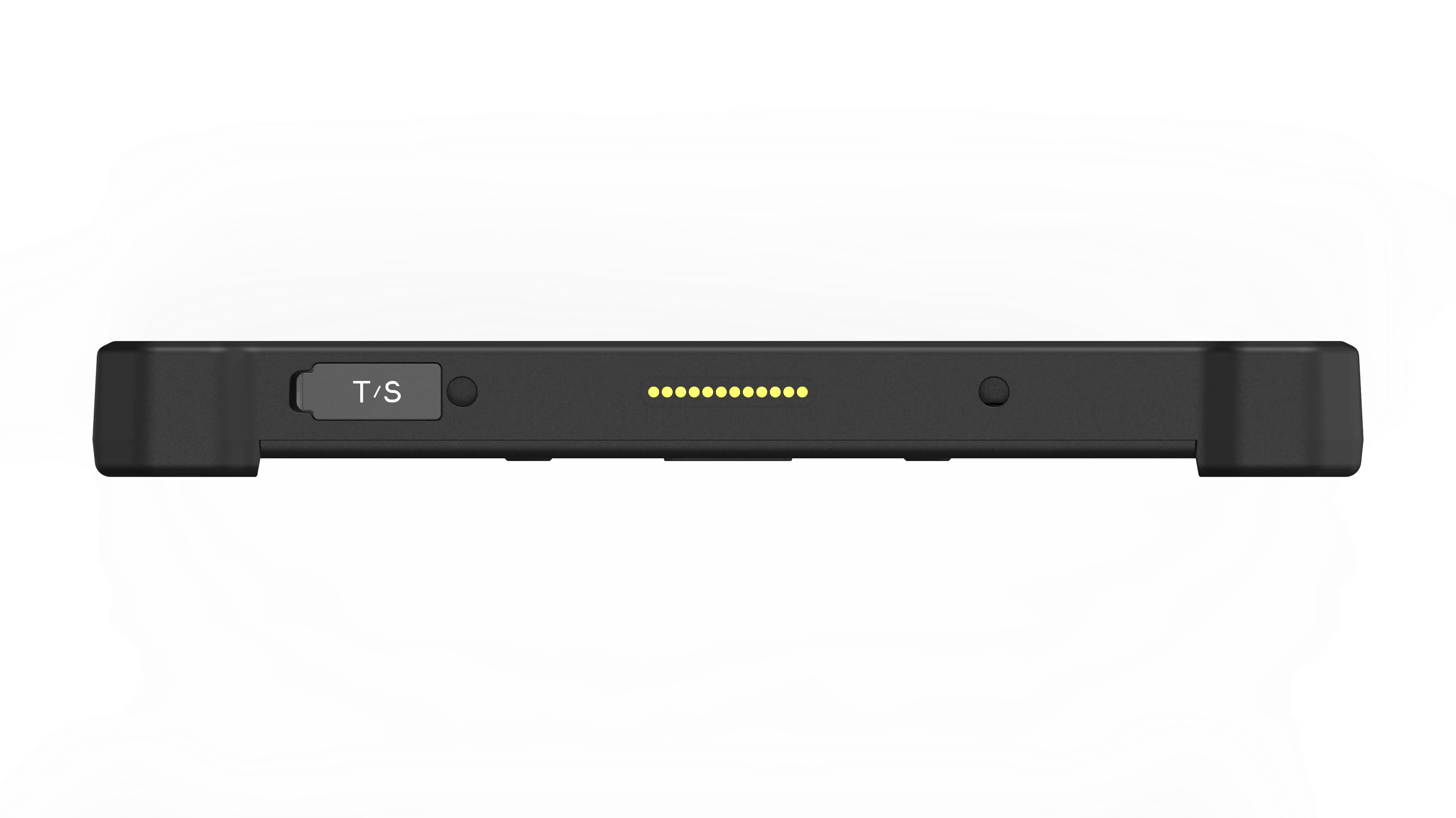

| POGO PIN | Rear 2-pin, Bottom 11-pin | |
| DB9 Port | ×1 Default pin I/O (RS232/485 DB9 optional) | |

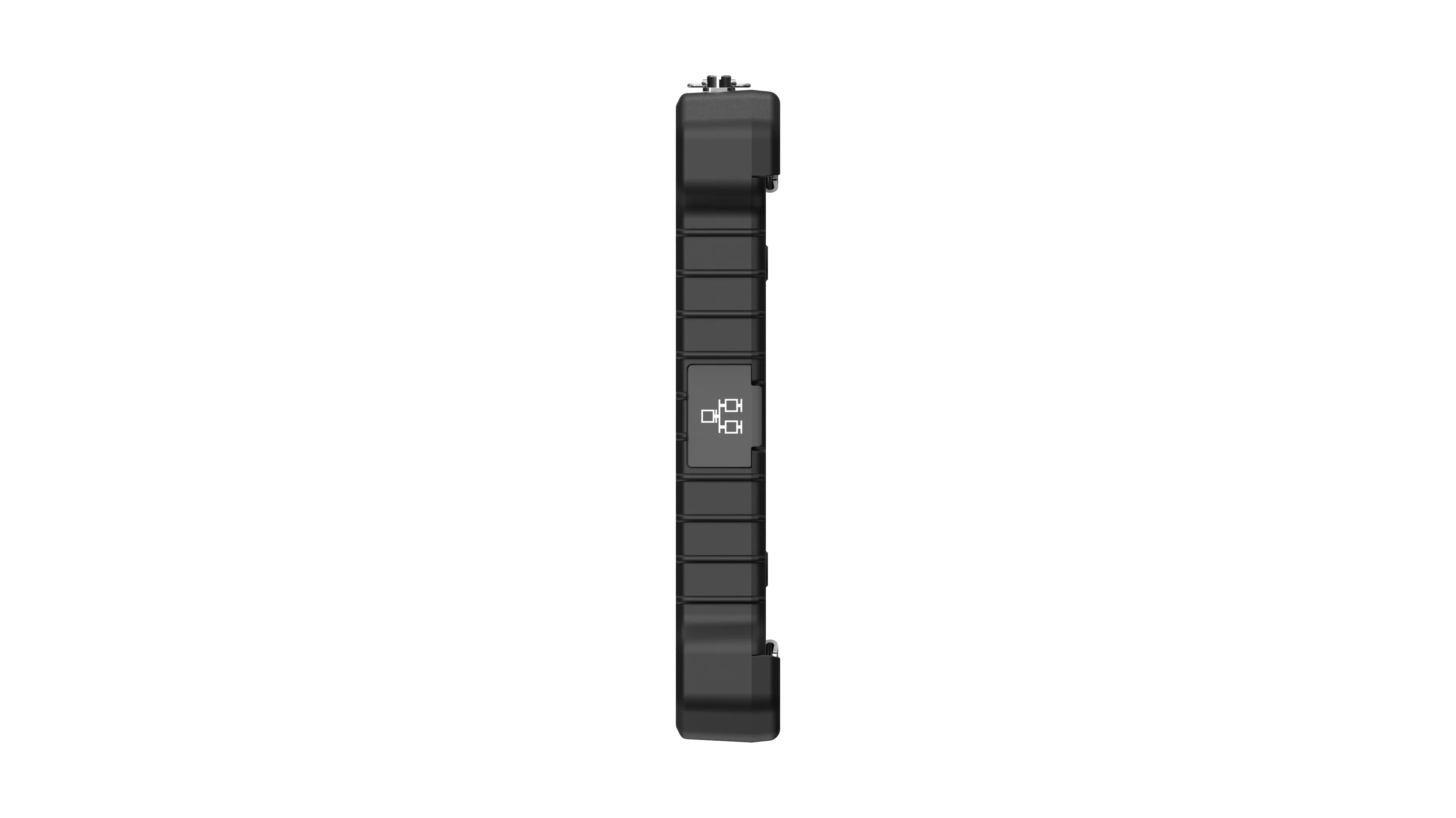

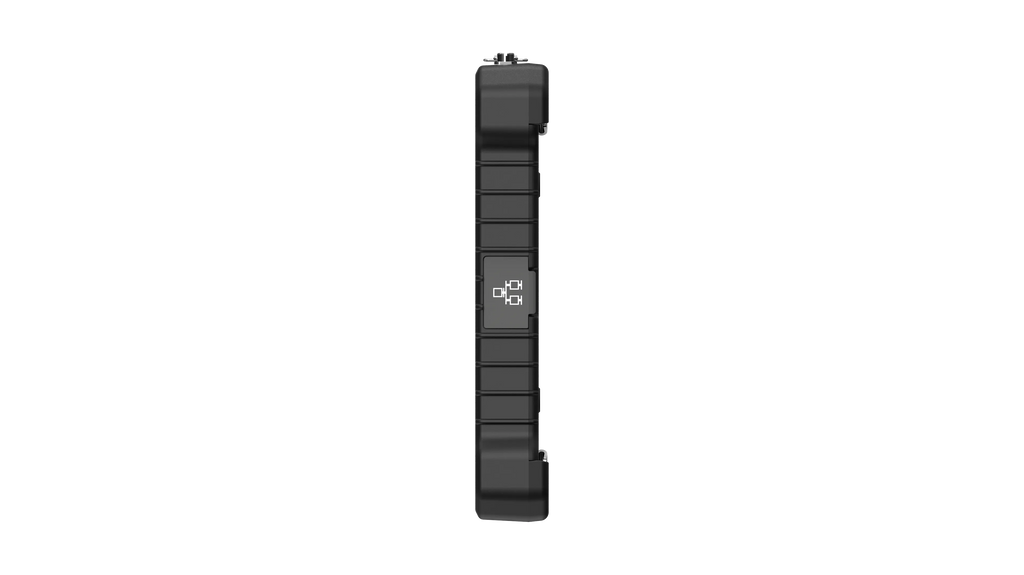

| RJ45 Port | ×1 | |
| Type-C | Default data only | |
| Power & Rugged Features | Power Adapter | AC100–240V input, DC19V/3.42A output |
| Protection Rating | IP67 | |
| Drop Resistance | 0.8m | |
| Operating Temp. | -15°C ~ 50°C | |
| Storage Temp. | -20°C ~ 60°C | |
| Humidity | 95% non-condensing | |
| ESD Protection | ±6kV contact discharge, ±12kV air discharge |
