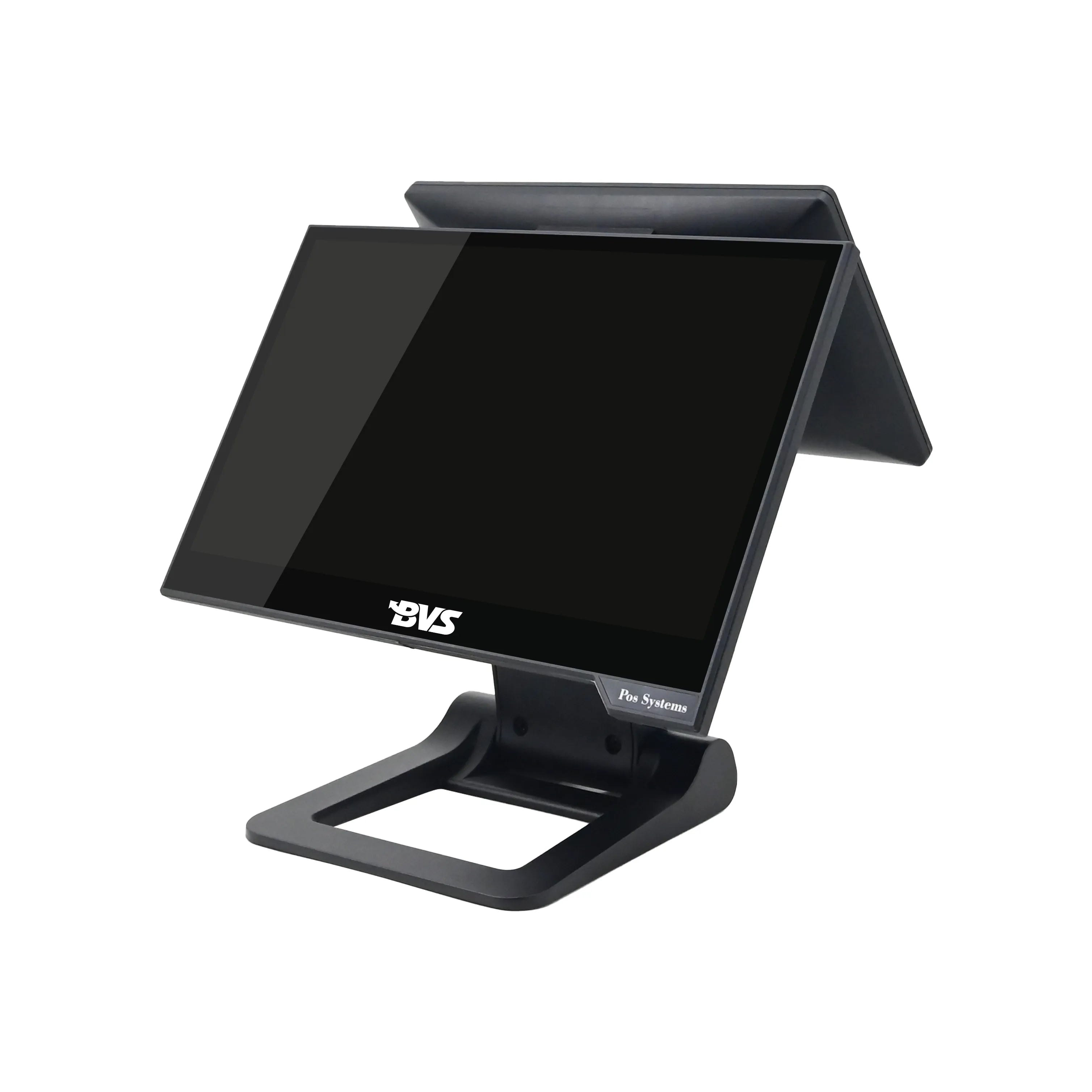

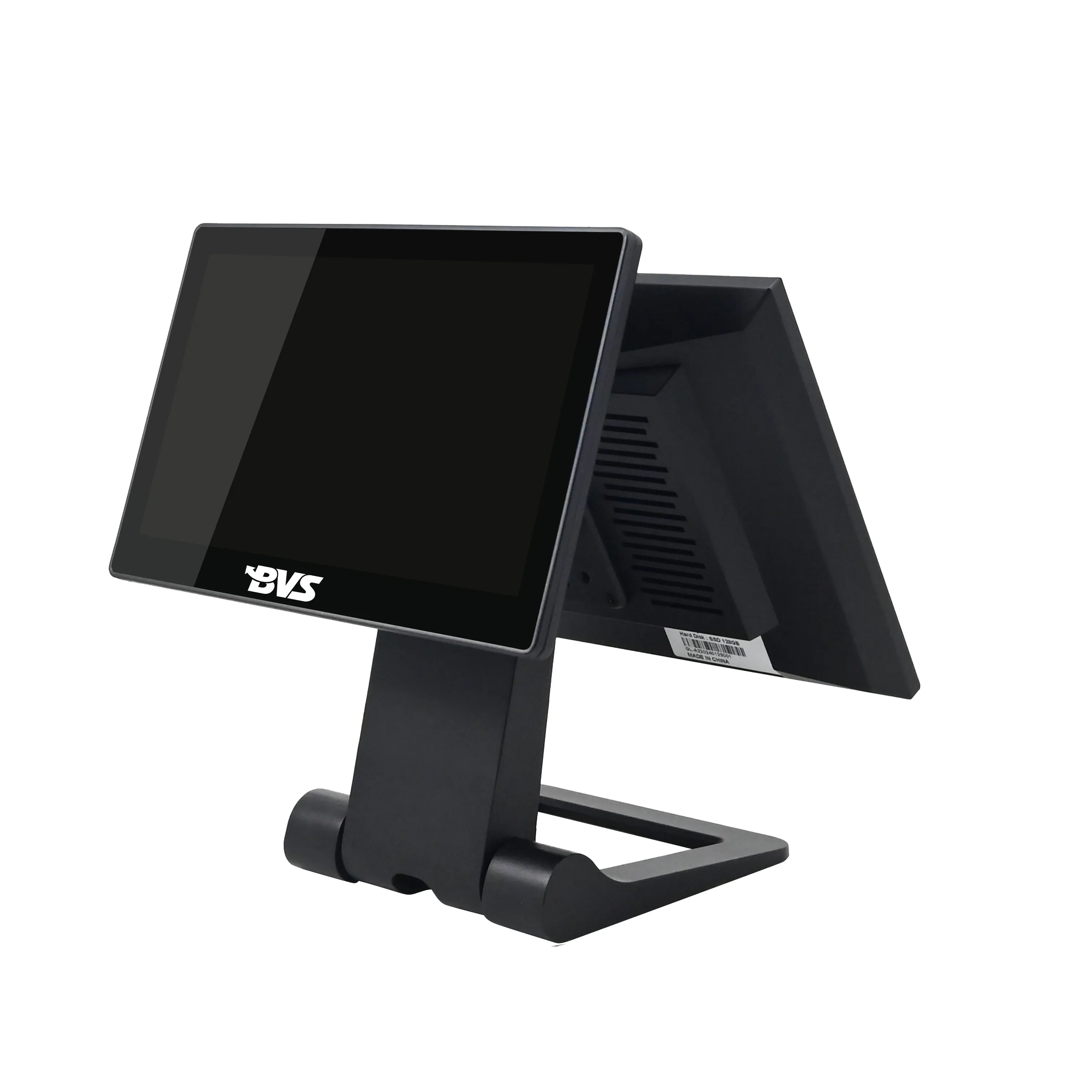

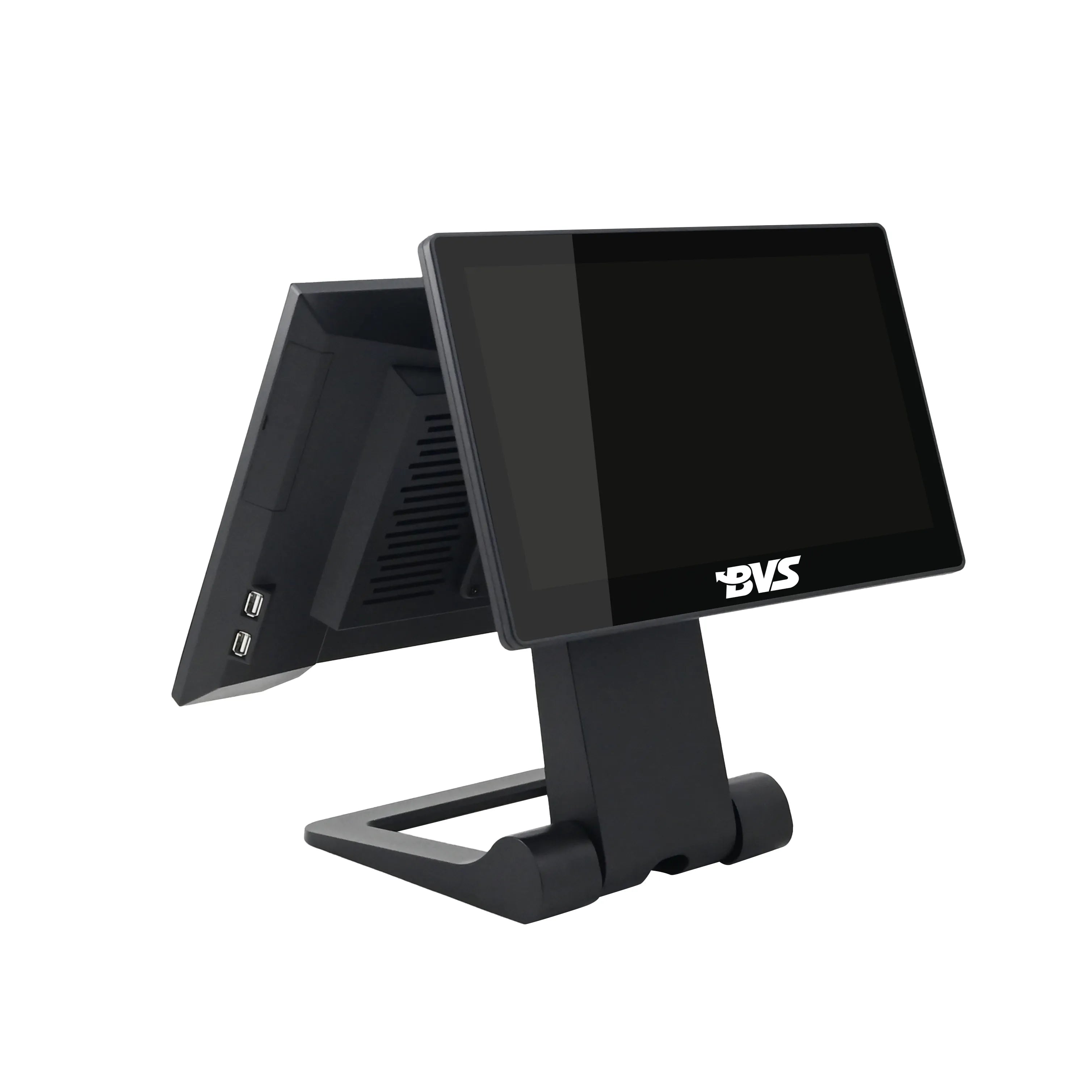

BVS-SW156A2 15.6 + 11.6 Inch Dual Display POS System, Full HD 1920×1080 Main Screen, ABS Housing with Folding Metal Stand, Windows POS Computer
Overview &Key Features
【Model】BVS-SW156A2
【Item】
The BVS-SW156A2 is a dual-display POS system combining a 15.6-inch main screen with an 11.6-inch secondary display. Designed around a sturdy folding metal stand and ABS housing, it provides an organized solution for applications where operators and customers need separate viewing areas. The main display delivers 1920×1080 Full HD resolution, while the secondary screen can be used for customer-facing information, promotional content, order details, or other application-specific interfaces. Running on Windows, the system offers flexibility for different commercial software environments.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty:2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5 6th Gen | i5-4th / i5-8th / i5-12th / i7-4th | ||||||||
| Frequency | 2.4 GHz | Turbo Boost 2.8 Ghz | |||||||||
| RAM | DDR3-8GB | DDR4-16GB/32GB/64GB | |||||||||
| SSD | NVMI-128GB | 64GB/256GB/512GB/1TB | |||||||||
| Operating system | Pre-install Windows OS（Unactivated）/Linux | / | |||||||||
| Display | Screen | 15.6 inch capacitive touch main display + 11.6" customer display | 15.6 inch capacitive touch main display +15.6" customer display | ||||||||
| Resolution | 1366*768+1920*1080 | 1920*1080+1920*1080 | |||||||||
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) | / | |||||||||
| Contrast ratio | 1000 | / | |||||||||
| Brightness | 250cd/m2 | / | |||||||||
| Screen scale | 16:9 | / | |||||||||
| Network | Wi-Fi | 2.4G-Wi-Fi, supporting Wi-Fi 802.11b/g/n protocols | 5G-Wi-Fi | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth 3.0/3.0+HS/4.0 | |||||||||

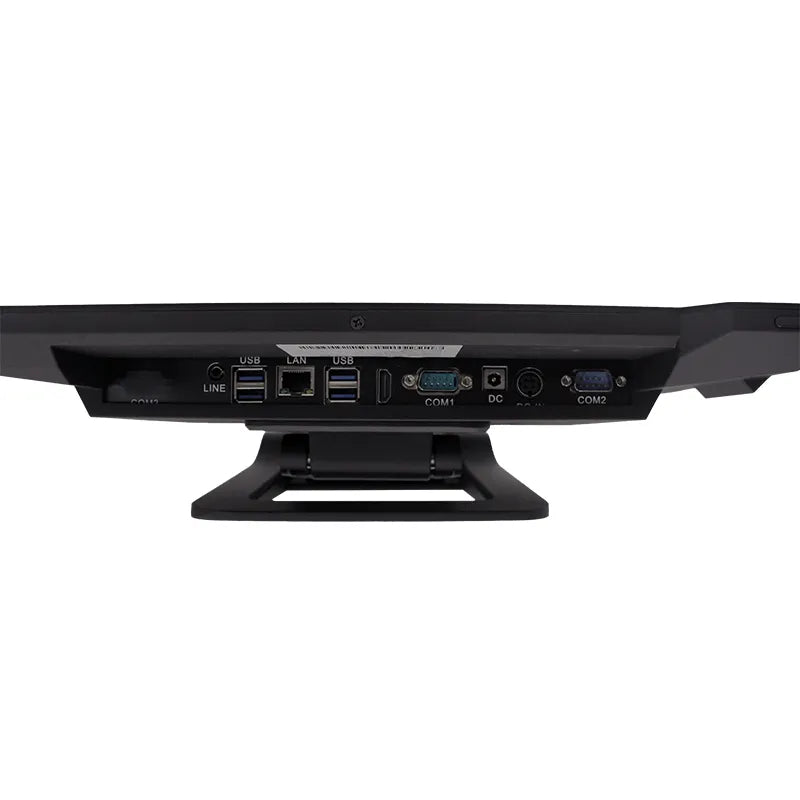

| I/O | I/O | 6 X USB,1 X COM, 1 X HD, 1X VGA, 1 X LAN, 1 X DC, 1 X MiC IN, 1 X LINE OUT | 6 X USB,1 X COM, 1 X HD, 1X VGA, 1 X LAN, 1 X DC, 1 X MiC IN, 1 X LINE OUT | ||||||||
| Multi-Media | Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | / | ||||||||
| Audio | MP3/WMA/AAC etc. | / | |||||||||
| Picture | jpeg, jpg | / | |||||||||
| Accessories | Adapter | 12V/5A | 12V/7A | ||||||||
| Temperature | Working temperature | -10~ 60°C | / | ||||||||
| Storage temperature | -20 ~ 70°C | / | |||||||||
| Mounting | Stand Mount | Desktop Stand Mount | / | ||||||||
| Packaging | Net weight | 5.3kg | / | ||||||||
| Gross weight | 6.5kg | / | |||||||||
| Product dimensions | 365*200*315mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 440*260*390mm（L*W*H）(Ctn Qty:1 pcs) | / | |||||||||
| Carton Dimension | / | / | |||||||||
| Other functions | NFC | NO | |||||||||
| RFID | NO | ||||||||||
| POE | NO | ||||||||||
| OEM | Appearance, Interface, CPU, Function ,Logo, etc. | ||||||||||
