【Model】BVS-HK

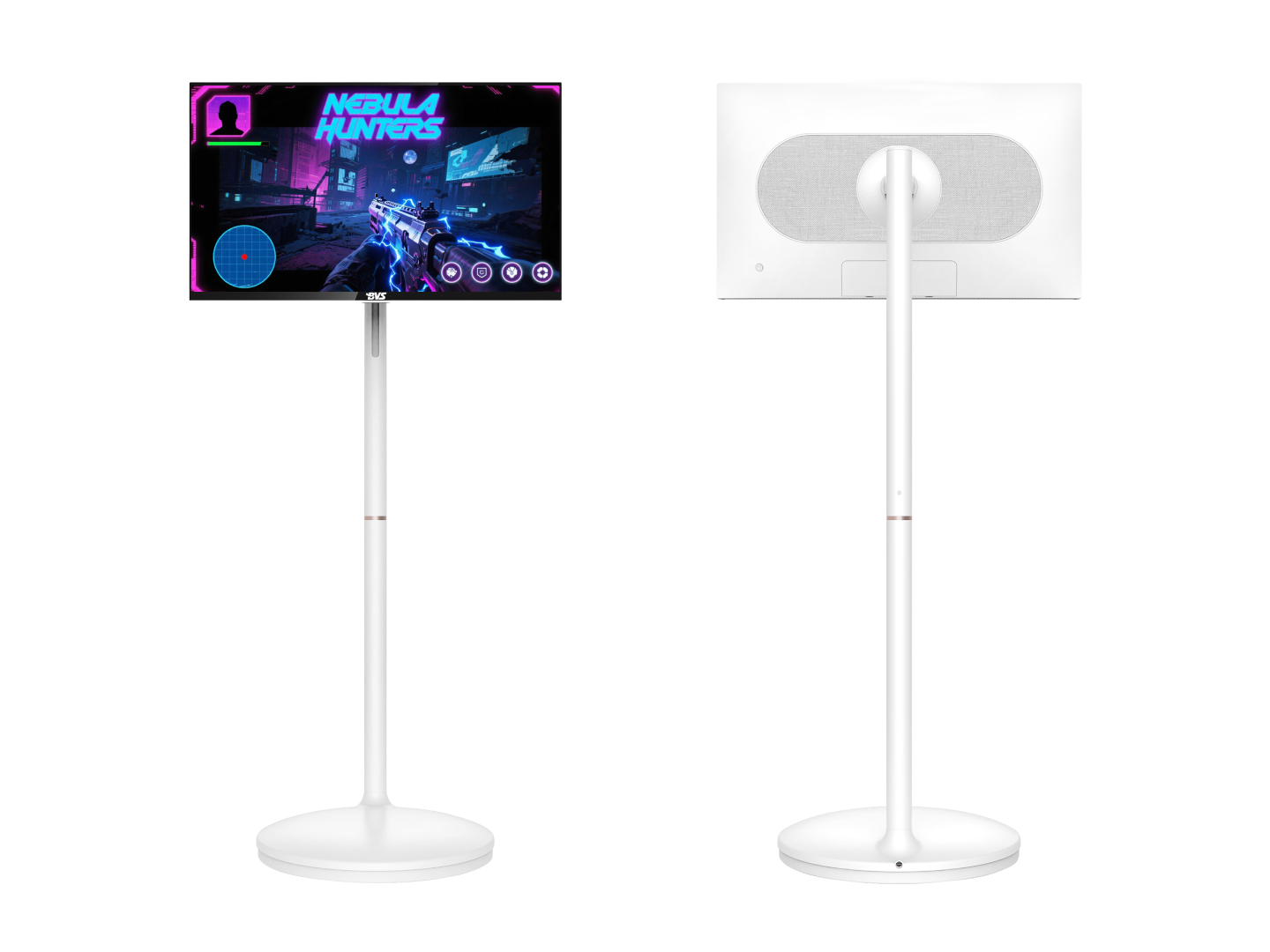

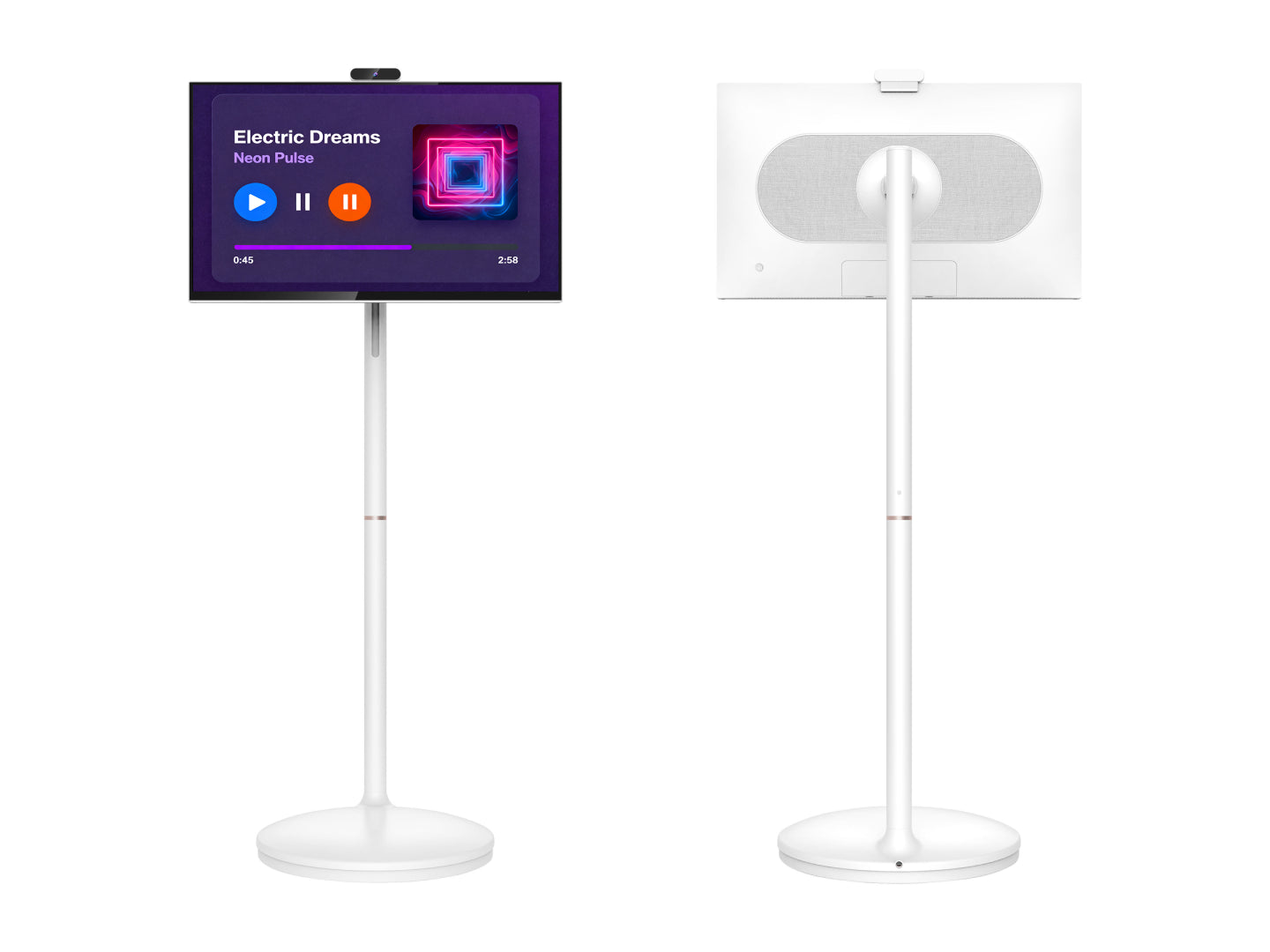

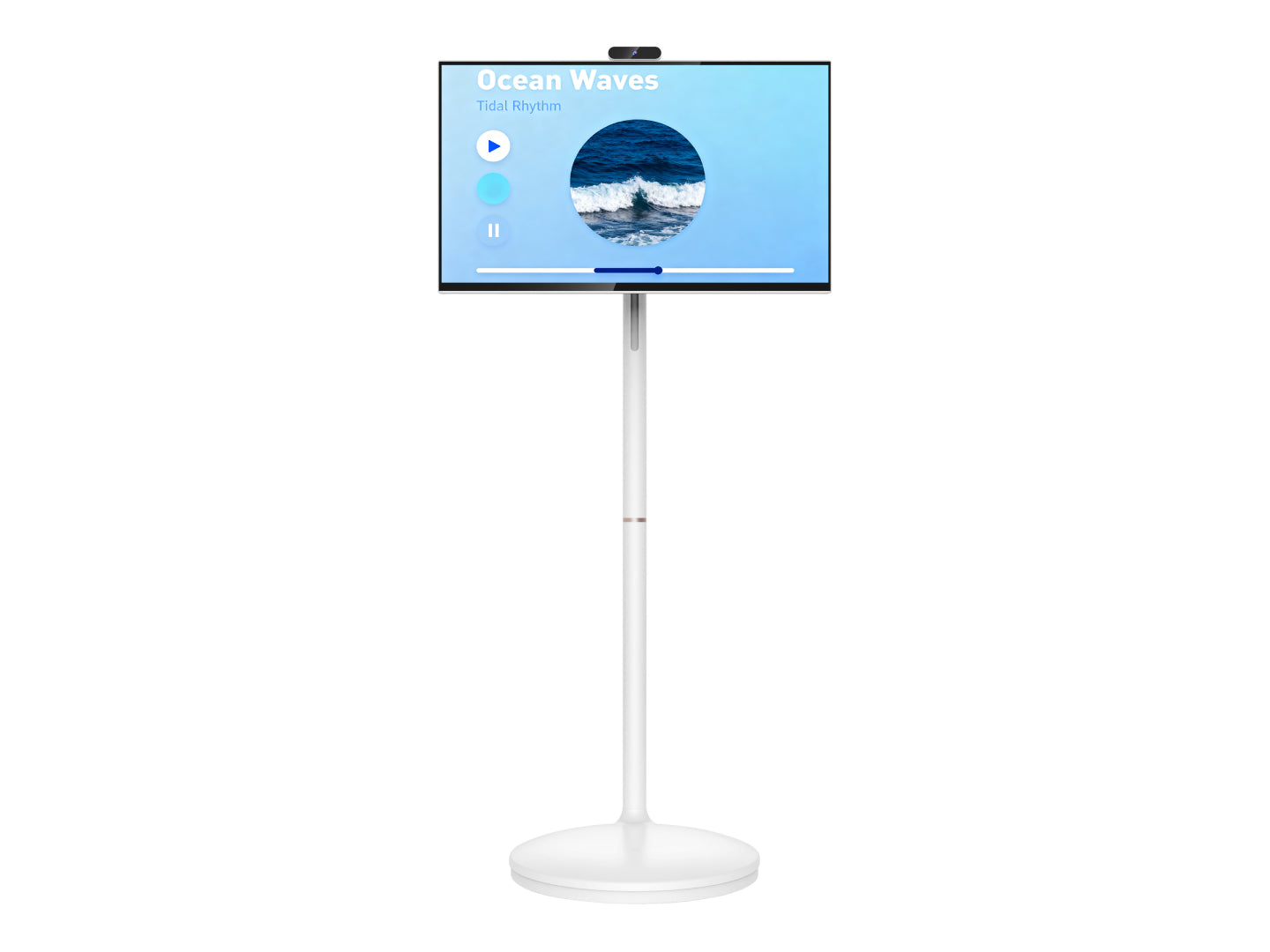

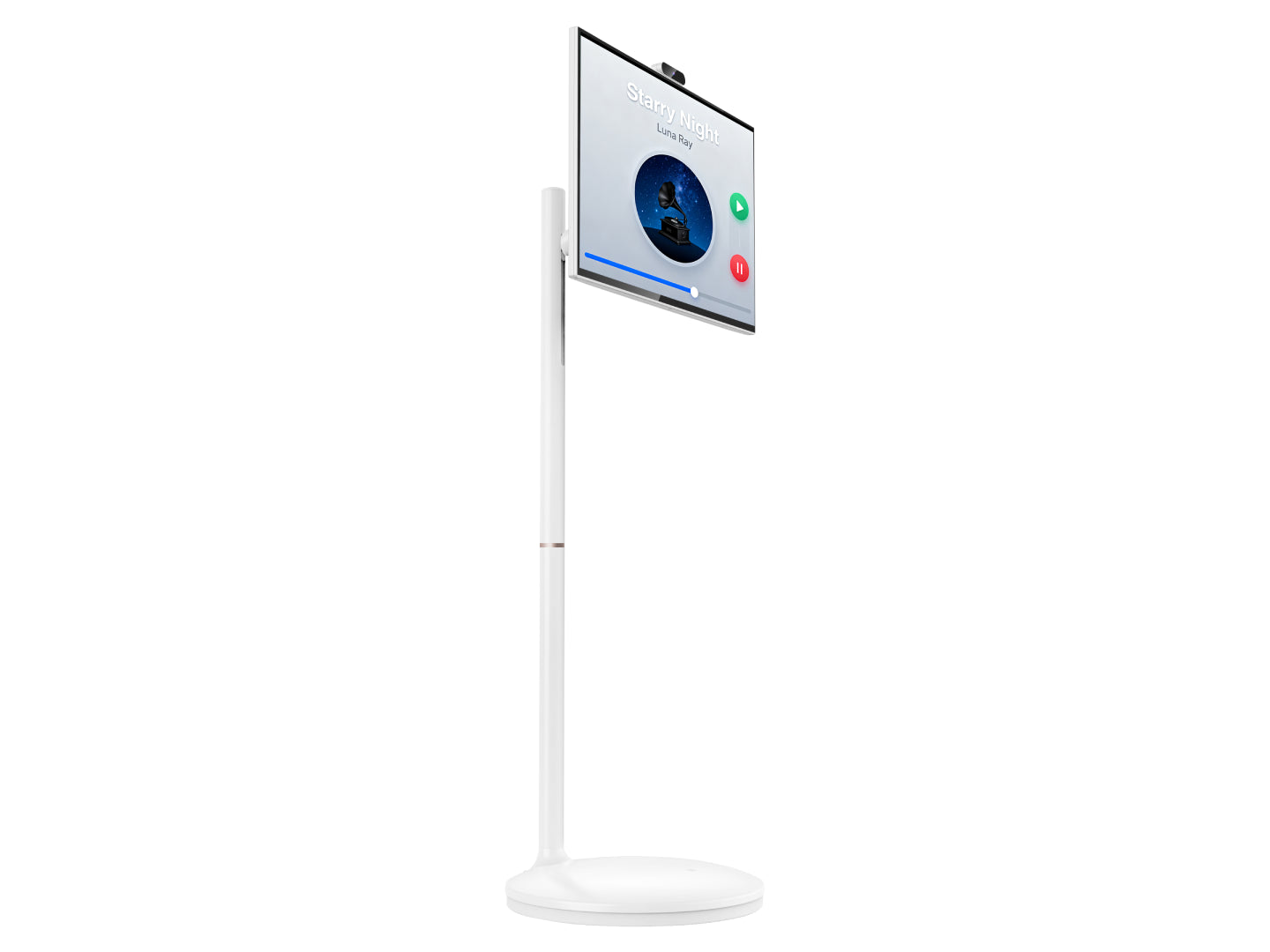

【Item】The BVS-HK 23.8–32'' Smart Portable TV Monitor features an Android system with touch screen, full swivel rotation, and wireless projection sharing. Ideal for hotels, education, retail, and smart home applications with Google Store support.
【Material】ABS Plastic Case, AG+AF tempered glass
【Notice】
-
Please contact us if you need other specifications.
-
Payment terms: Samples 100% payment in advance, bulk order 30% deposit, 70% payment before shipment. Sample order accepted.
-
Sample delivery time is 7 working days after payment is received, for bulk orders, shipping time is negotiated.
-
The shipping fees should be covered by buyers, please contact us for details.
-
For batch orders, printing logos, and design boxes, etc.
-
Warranty: One year.
【Parameter List】
| Model |
BVS-HK
|
| Body material |
ABS |
| Surface material |
AG+AF tempered glass |
| CPU |
MTK8788 |
| Memory RAM |
DDR4 4GB /8GB
|
| Storage ROM |
EMMC 64GB / 128G
|
| System version |
Android 13
|
| Panel dimensions |
23.8'', 27" ,32'' |
| Resolution |
Standard: 1920(RGB)×1080, FHD
|
| Viewing Angle |
89/89/89/89 (Typ.) (CR≥10)
|
| Display brightness |
300 cd/m² (Typ.)
|
| Frame rate |
60Hz |
| Support colors |
16.7M, 72%NTSC |
| Contrast |
1200:1 (Typ.) (transmission) |
| Video Formats |
Support RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP4, etc
|
| Image formats |
Supports BMP, JPEG, PNG, GIF, etc
|
| Network support |
WLAN-802.11a /b/g/n/ac |
| Bluetooth |
5.0 DR/EDR/BLE |
| HDMI |
1 group HDMI-IN interface, maximum support 3840×2160 30Hz
|
| USB |
2 USB-A2.0 High Speed (HS) ports with data transfer rate up to 480 Mbps
|
| SDIO interface
|
1 x SD3.0, 4bit Micro SD card with hotplug support
|
| IO terminal |
USB-C+USB2.0x2+TF+HDMI-IN+3.5mm headphones +MIC-IN
|
| Environment of use |
Temperature ‐0℃~55℃/ humidity 10%RH~90%RH
|
| Storage environment |
Temperature ‐5 ° C ~60 ° C/humidity 10%RH~90%RH
|
