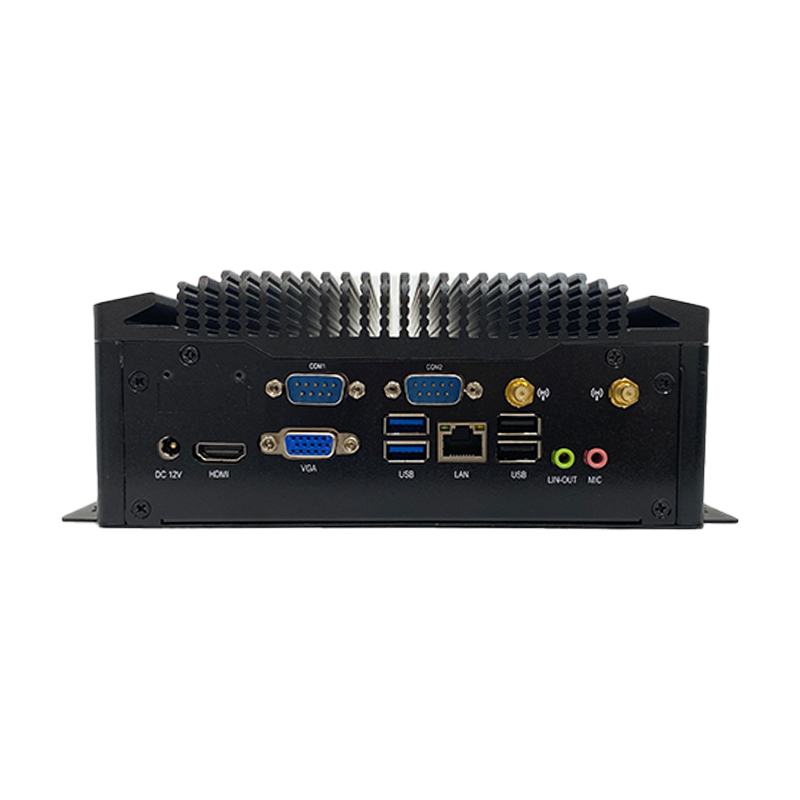

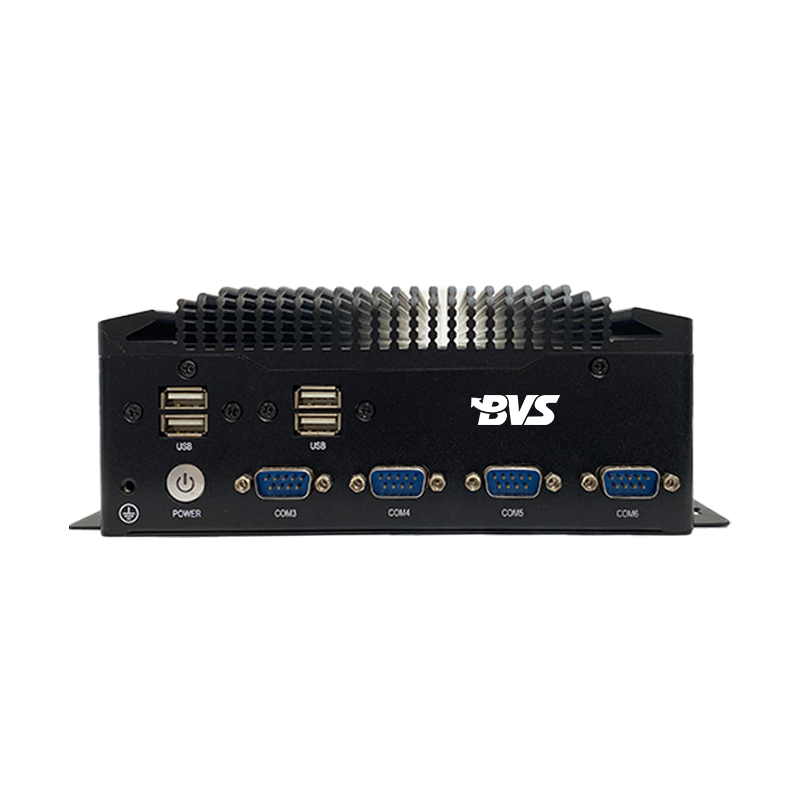

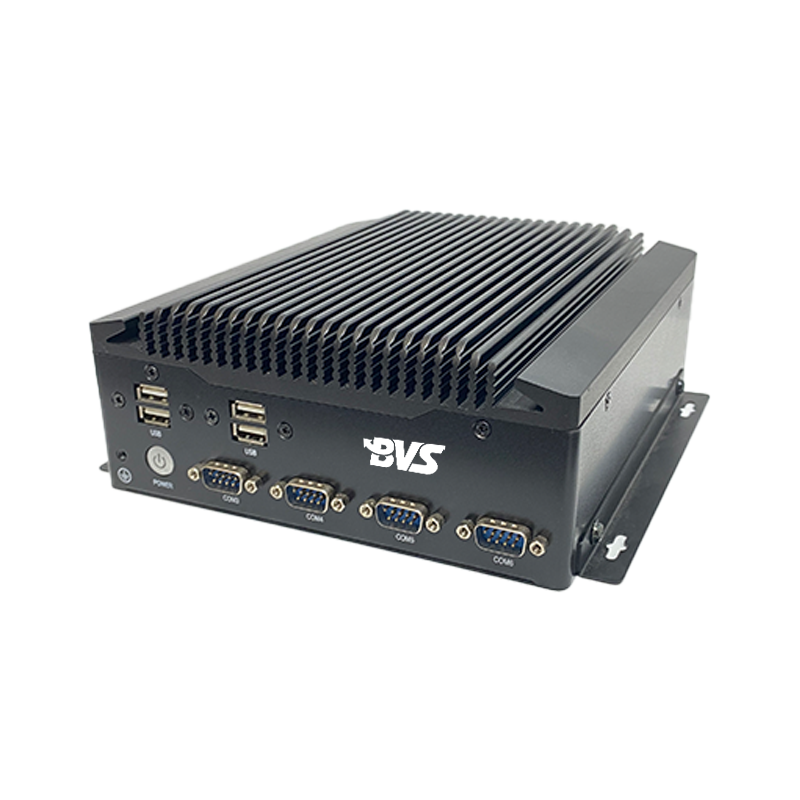

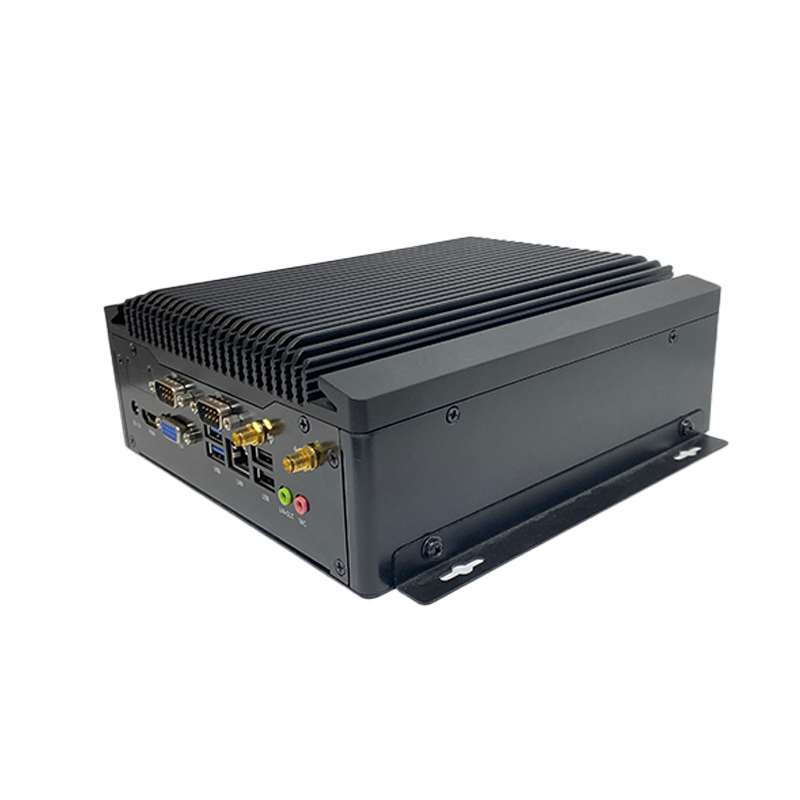

GW-E Factory Fanless Mini PC Intel Core i5 HD VGA/DP Dual Display Industrial Computer with Dual LAN,Wi-Fi Hotspot Optional
【Model】BVS-GW-E
【Item】The GW-E Factory Industrial Mini PC features Intel Core i5, dual HD/VGA/DP displays, dual LAN ports, Wi-Fi Hotspot Optional and a durable aluminum alloy chassis. Perfect for industrial automation, factory monitoring, and enterprise applications requiring silent, reliable, and long-term operation.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping: Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Paramater List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i3 8th Gen | i3 10th | ||||||||
| Total Cores | 2 | 4 | |||||||||
| Frequency | Processor Base Frequency 2.10 Ghz | Turbo Boost 4.10 Ghz | |||||||||
| RAM | DDR4 8GB | DDR4 16GB/32GB/64GB | |||||||||
| SSD | 128GB | 64GB/256GB/512GB/1TB | |||||||||
| Operating system | Pre-install Windows OS（Unactivated） | Linux | |||||||||
| Network | Wi-Fi | 2.4G-Wi-Fi, supporting Wi-Fi 802.11b/g/n protocols | 2.4G+5G-Wi-Fi | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth 3.0/3.0+HS/4.0 | |||||||||
| Interfaces | USB | 8 | 6 | ||||||||
| COM | 2*(RS232) | 1*(RS232)+1*(RS485)/6*(RS232)/5*(RS232)+1*(RS485) | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | VGA*0, DP*1 | |||||||||
| LAN | 1 | 2 | |||||||||
| Headphone | 1 | / | |||||||||
| DC | 1 | Phoenix terminal | |||||||||
| Power | 1 | Phoenix terminal | |||||||||
| Multi-Media | Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | / | ||||||||
| Audio | MP3/WMA/AAC etc. | / | |||||||||
| Picture | jpeg, jpg | / | |||||||||
| Accessories | Adapter | 12V/7A | / | ||||||||
| Temperature | Working temperature | -10~ 60°C | / | ||||||||
| Storage temperature | -20 ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | （Swing Arm Mount/Ceiling Mount） | ||||||||
| Panel Mount | / | （Rear Flush Panel Mount） | |||||||||
| Rack Mount | Rack Ear | Desktop Stand Mount | |||||||||
| Packaging | Net weight | 3.26kg | / | ||||||||
| Gross weight | 4.8kg | / | |||||||||
| Product dimensions | 220*210*80mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 430*355*140mm（L*W*H） | / | |||||||||
| Carton Dimension | 616*355*327（L*W*H）(Ctn Qty:4 pcs) | / | |||||||||
| Other functions | POE | NO | / | ||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
